Brand: Kipp

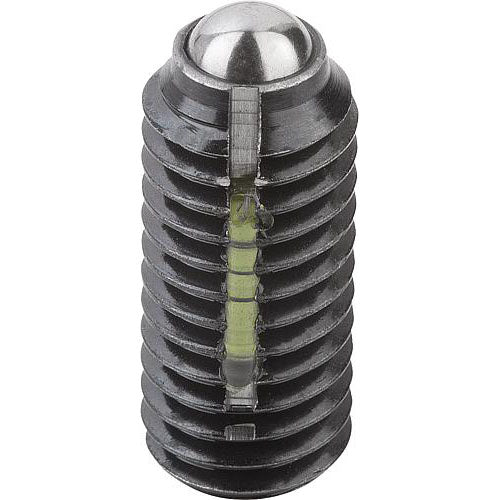

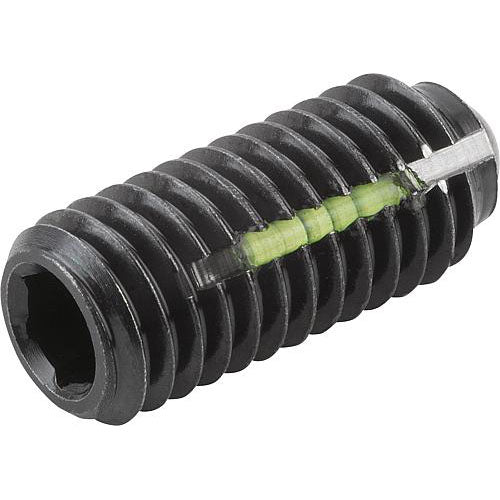

KIPP K0325.16 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M16 L=33, STEEL, COMP:BALL STEEL
SKU: KP-K0325.16
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock ball style, hexagon socket, steel, standard end pressure, metric
Material: Body in steel quality class 5.8. Ball in steel. Spring in spring steel class D. LONG-LOK thread system nylon Type: Black oxide finish. Ball hardened. L2 = approx. 2x thread pitch

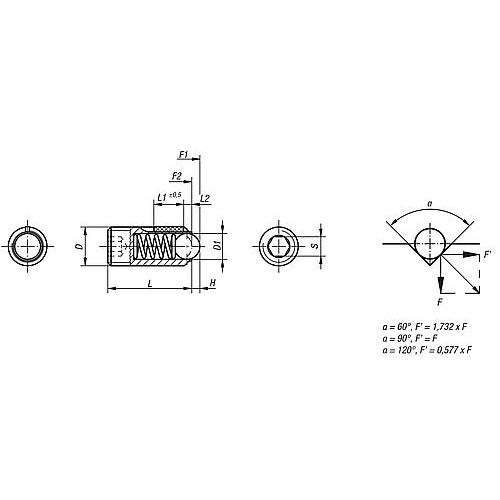

| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Pin Style: | Ball |
| Carrier Style: | Hexagon Socket |
| Loosening Torque Approx. Nm: | 3 |
| D: | M16 |
| D1: | 10 |
| Tightening Torque Approx. Nm: | 3.9 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 65 |
| Spring Force Final Pressure F2 Approx. N: | 125 |
| H: | 3.5 |
| L: | 33 |
| L1: | 14 |
| S: | 8 |
