Brand: Kipp

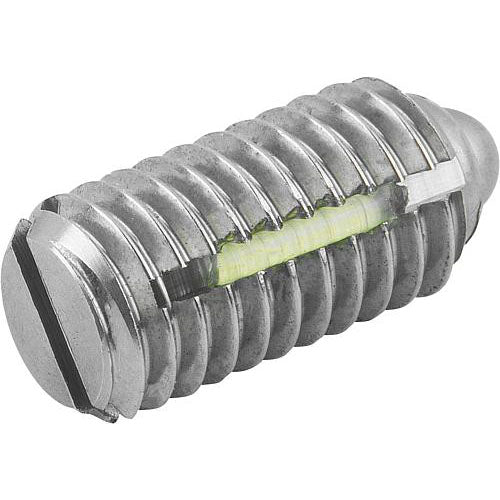

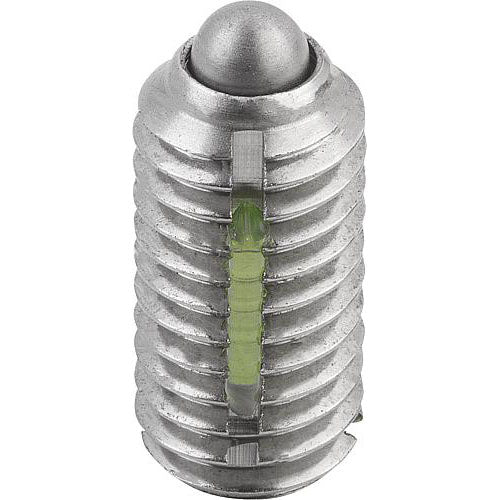

KIPP K0324.AJ SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/4-28 L=14, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10
SKU: KP-K0324.AJ
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock, pin style, slotted, stainless steel, standard end pressure, inch

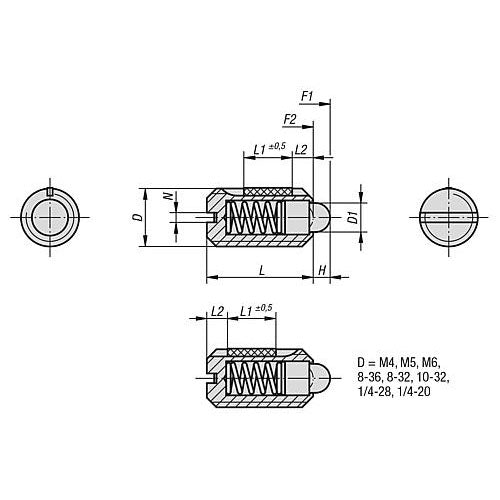

Material: Type: Bright. Thrust pin hardened. Part Number Example: K0324.A3 Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch
| Main Material: | Stainless Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Packaging Unit: | 10 |
| Pin Style: | Thrust Pin |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 0.21 |
| D: | 1/4-28 |
| D1: | 2.7 |
| Tightening Torque Approx. Nm: | 0.44 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 7 |
| Spring Force Final Pressure F2 Approx. N: | 20 |
| H: | 2 |
| L: | 14 |
| L1: | 7 |
| N: | 1 |
