Brand: Kipp

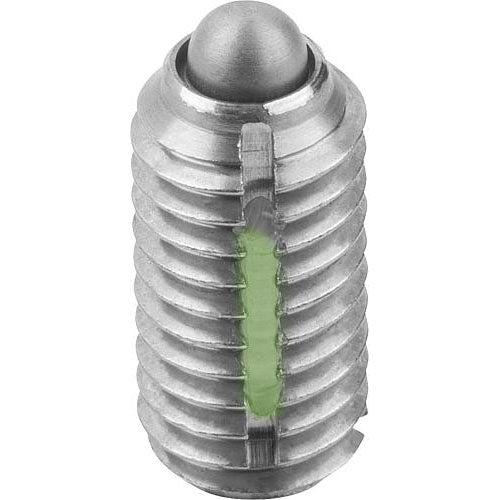

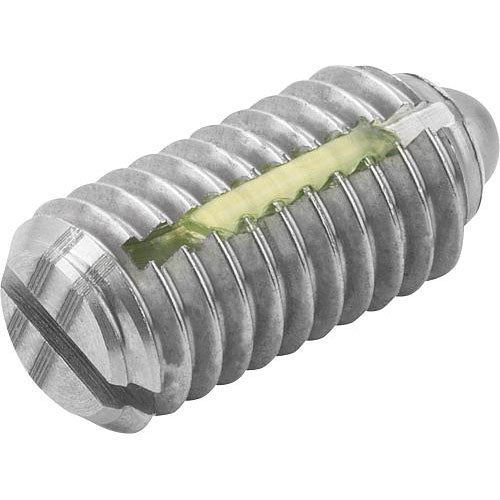

KIPP K0324.210 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M10 L=19, STAINLESS STEEL, COMP:PIN STAINLESS
SKU: KP-K0324.210
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock, pin style, slotted, stainless steel, heavy end pressure, metric

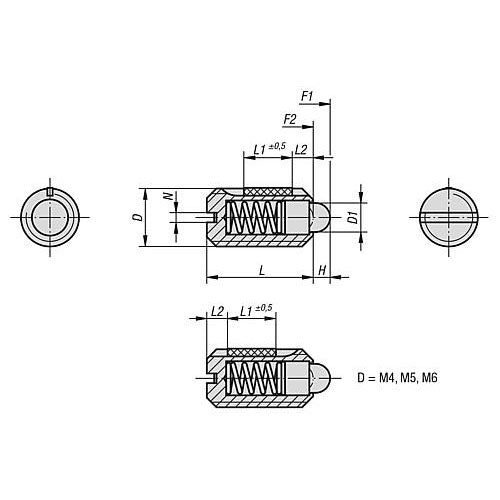

Material: Body in stainless steel 1.4305; pressure pin in stainless steel 1.4034; spring in stainless steel 1.4310 LONG-LOK thread system in nylon Type: Body natural finish, pressure pin hardened L2 = approx. 2x thread pitch
| Main Material: | Stainless Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 5 |
| Pin Style: | Thrust Pin |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 0.62 |
| D: | M10 |
| D1: | 4.5 |
| Tightening Torque Approx. Nm: | 1.36 |
| Spring Strength: | Intensified |
| Spring Force Initial Pressure F1 Approx. N: | 20 |
| Spring Force Final Pressure F2 Approx. N: | 54 |
| H: | 2.5 |
| L: | 19 |
| L1: | 9 |
| N: | 1.6 |
