Brand: Kipp
KIPP K0324.116 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=M16 L=24, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
SKU: KP-K0324.116
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

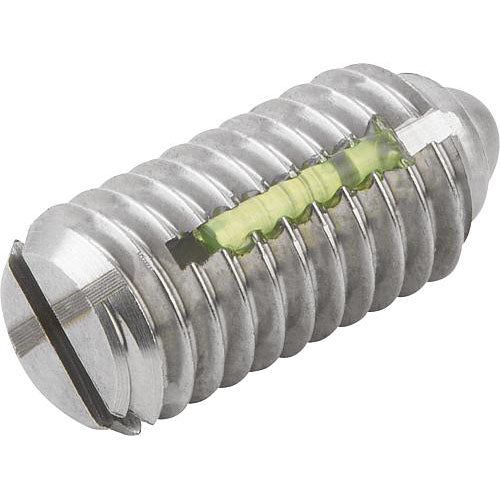

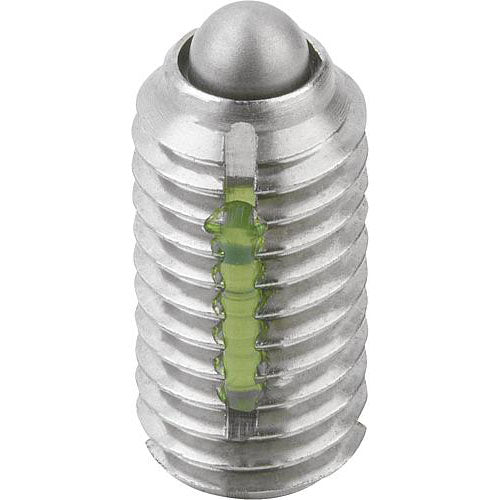

Spring Plungers with thread lock, pin style, slotted, stainless steel, light end pressure, metric
Material: Body in stainless steel 1.4305; pressure pin in stainless steel 1.4034; spring in stainless steel 1.4310 LONG-LOK thread system in nylon Type: Body natural finish, pressure pin hardened L2 = approx. 2x thread pitch
| Main Material: | Stainless Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 5 |
| Pin Style: | Thrust Pin |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 3.05 |

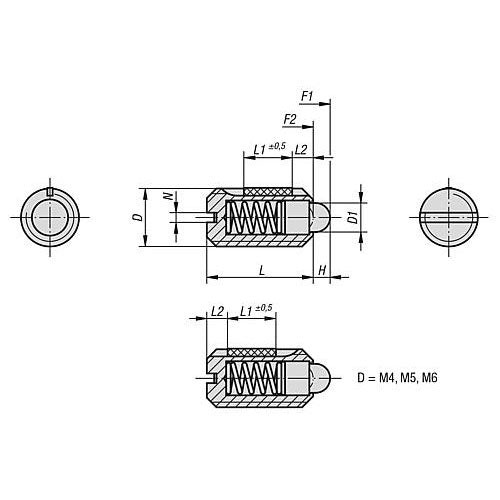

| D: | M16 |
| D1: | 8.5 |
| Tightening Torque Approx. Nm: | 3.95 |
| Spring Strength: | Light |
| Spring Force Initial Pressure F1 Approx. N: | 22 |
| Spring Force Final Pressure F2 Approx. N: | 50 |
| H: | 4.5 |
| L: | 24 |
| L1: | 14 |
| N: | 2.5 |
