Brand: Kipp

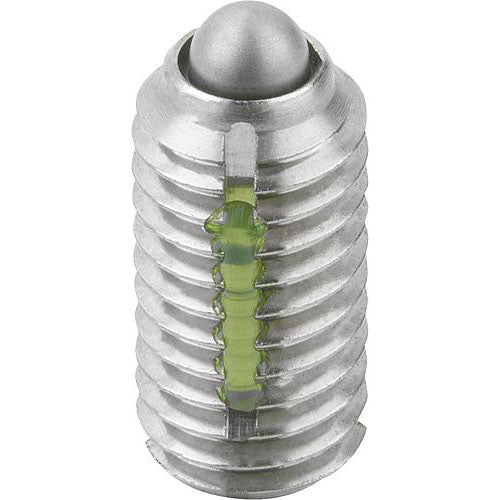

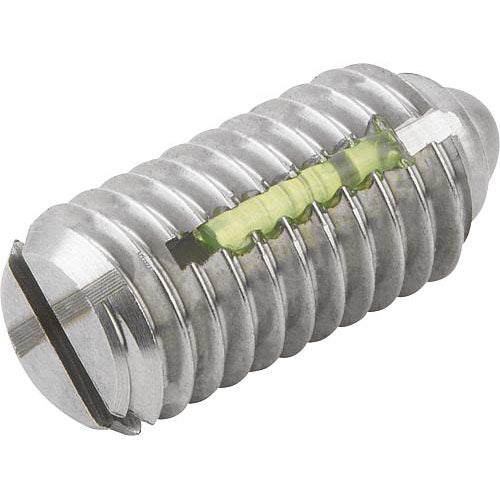

KIPP K0324.104 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=M04 L=9, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
SKU: KP-K0324.104
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock, pin style, slotted, stainless steel, light end pressure, metric
Material: Body in stainless steel 1.4305; pressure pin in stainless steel 1.4034; spring in stainless steel 1.4310 LONG-LOK thread system in nylon Type: Body natural finish, pressure pin hardened L2 = approx. 2x thread pitch
| Main Material: | Stainless Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 5 |
| Pin Style: | Thrust Pin |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 0.12 |
| D: | M4 |
| D1: | 1.8 |
| Tightening Torque Approx. Nm: | 0.18 |
| Spring Strength: | Light |
| Spring Force Initial Pressure F1 Approx. N: | 3 |
| Spring Force Final Pressure F2 Approx. N: | 10 |
| H: | 1.5 |
| L: | 9 |
| L1: | 5 |
| N: | 0.6 |
