Brand: Kipp

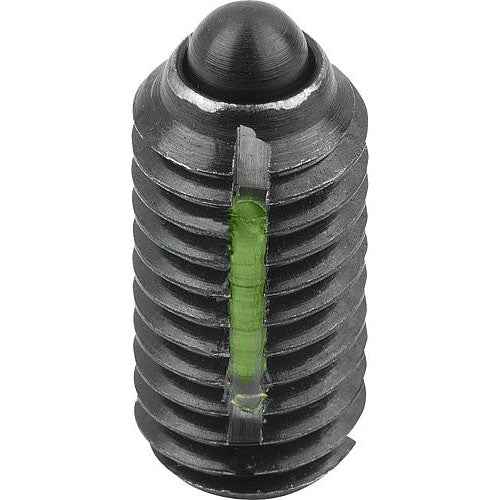

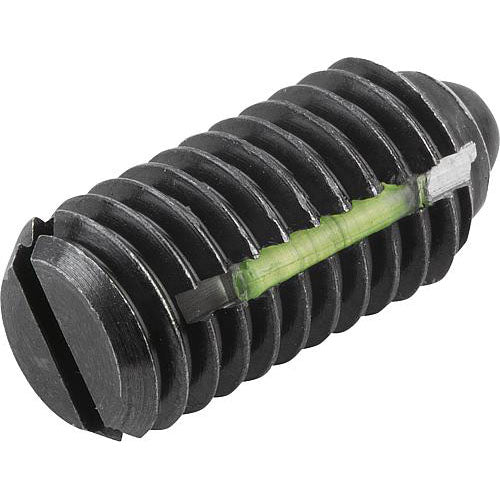

KIPP K0323.AG SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=8-36 L=9, STEEL, COMP:PIN STEEL, PU=10
SKU: KP-K0323.AG
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock, pin style, slotted, steel, standard end pressure, inch
Material: Body steel quality class 5.8. Thrust pin steel. Spring Class D steel wire. LONG-LOK thread lock Nylon. Type: Black oxide finish. Thrust pin hardened. Part Number Example: K0323.AG Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch
| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Packaging Unit: | 10 |
| Pin Style: | Thrust Pin |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 0.12 |
| D: | 8-36 |
| D1: | 1.8 |
| Tightening Torque Approx. Nm: | 0.18 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 6 |
| Spring Force Final Pressure F2 Approx. N: | 20 |
| H: | 1.5 |
| L: | 9 |
| L1: | 5 |
| N: | 0.6 |
