Brand: Kipp

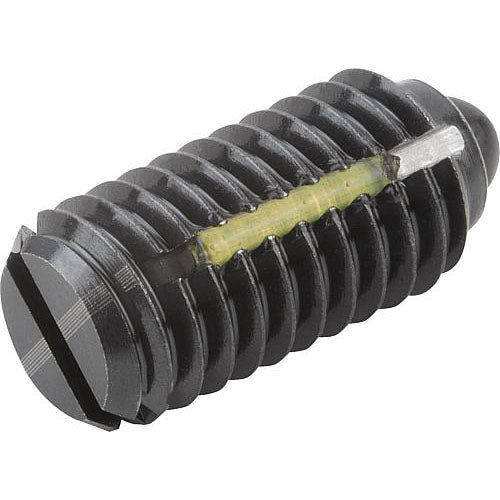

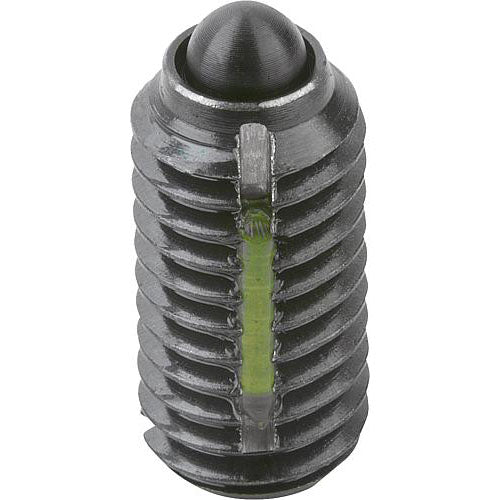

KIPP K0323.1A5 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=1/2-13 L=22, STEEL, COMP:PIN STEEL, PU=5
SKU: KP-K0323.1A5
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock, pin style, slotted, steel, light end pressure, inch

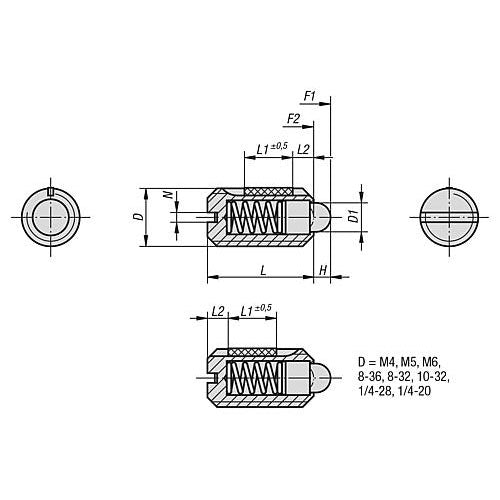

Material: Body steel quality class 5.8. Thrust pin steel. Spring Class D steel wire. LONG-LOK thread lock Nylon. Type: Black oxide finish. Thrust pin hardened. Part Number Example: K0323.AG Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch
| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 5 |
| Pin Style: | Thrust Pin |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 1.41 |
| D: | 1/2-13 |
| D1: | 6 |
| Tightening Torque Approx. Nm: | 2.11 |
| Spring Strength: | Light |
| Spring Force Initial Pressure F1 Approx. N: | 14 |
| Spring Force Final Pressure F2 Approx. N: | 26 |
| H: | 3.5 |
| L: | 22 |
| L1: | 10 |
| N: | 2 |
