Brand: Kipp

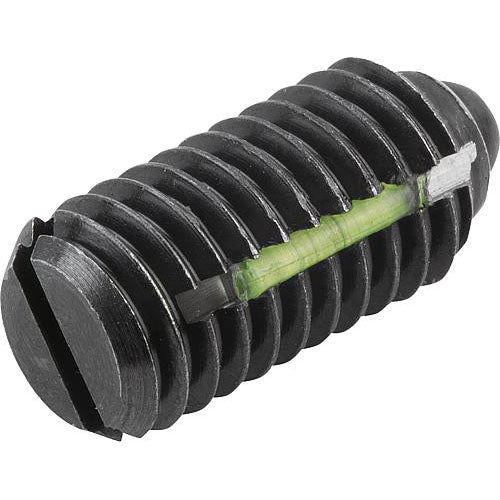

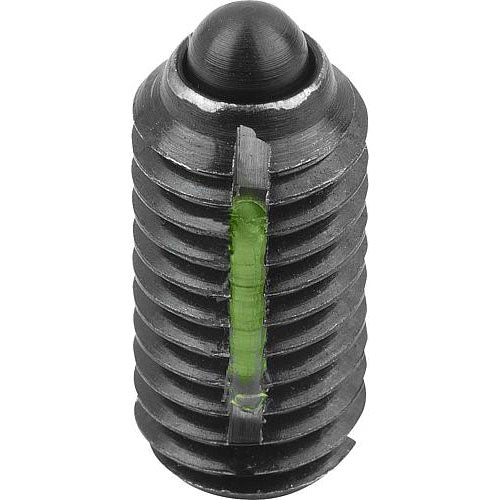

KIPP K0323.12 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M12 L=22, STEEL, COMP:PIN STEEL, PU=5
SKU: KP-K0323.12
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock, pin style, slotted, steel, standard end pressure, metric

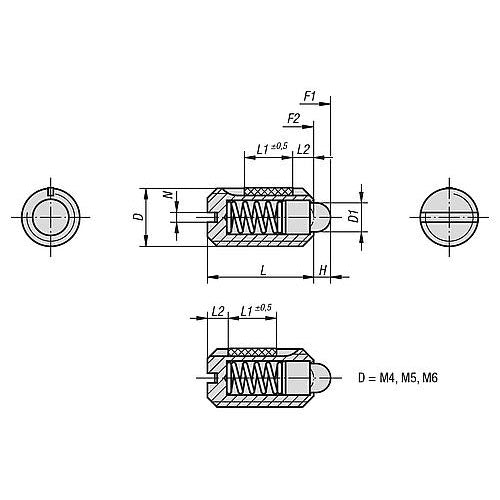

Material: Body in steel quality class 5.8. Pressure pin in steel. Spring steel class D. LONG-LOK thread system nylon. Type: Black oxide finish. Pressure pin hardened. L2 = approx. 2x thread pitch
| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 5 |
| Loosening Torque Approx. Nm: | 1.41 |
| D: | M12 |
| D1: | 6 |
| Tightening Torque Approx. Nm: | 2.11 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 30 |
| Spring Force Final Pressure F2 Approx. N: | 55 |
| H: | 3.5 |
| L: | 22 |
| L1: | 10 |
| N: | 2 |
