Brand: Kipp
KIPP K0322.2A3 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=5/16-18 L=16, STAINLESS STEEL, COMP:BALL STAINLESS
SKU: KP-K0322.2A3
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock ball style, slotted, stainless steel, heavy end pressure, inch

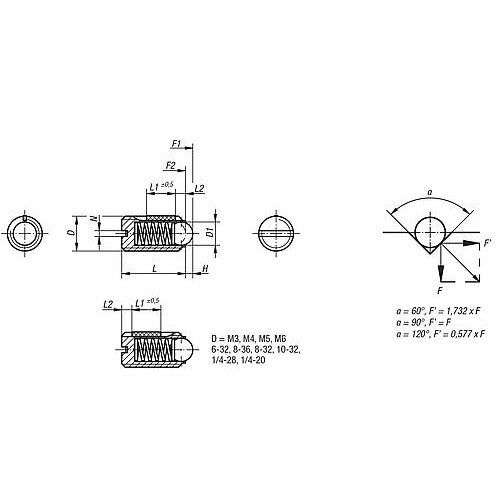

Material: body 1.4305 (AISI 303 equivalent). Ball 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock, Nylon. Type: Bright. Ball hardened. Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch
| Main Material: | Stainless Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Packaging Unit: | 10 |
| Pin Style: | Ball |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 0.37 |
| D: | 5/16-18 |
| D1: | 5 |
| Tightening Torque Approx. Nm: | 1.09 |
| Spring Strength: | Intensified |
| Spring Force Initial Pressure F1 Approx. N: | 47 |
| Spring Force Final Pressure F2 Approx. N: | 73 |
| H: | 1.5 |
| L: | 16 |
| L1: | 8 |
| N: | 1.2 |
