KIPP K0321.A5 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/2-13 L=22, STEEL, COMP:BALL STEEL, PU=5
KIPP K0321.A5 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/2-13 L=22, STEEL, COMP:BALL STEEL, PU=5
KIPP K0321.A5 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/2-13 L=22, STEEL, COMP:BALL STEEL, PU=5

Brand: Kipp

KIPP K0321.A5 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/2-13 L=22, STEEL, COMP:BALL STEEL, PU=5

SKU: KP-K0321.A5
MPN: K0321.A5

Only 0 left!
Please Email SALES For Pricing

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

KIPP K0321.A5 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/2-13 L=22, STEEL, COMP:BALL STEEL, PU=5
Spring Plungers with thread lock ball style, slotted, steel, standard end pressure, inch

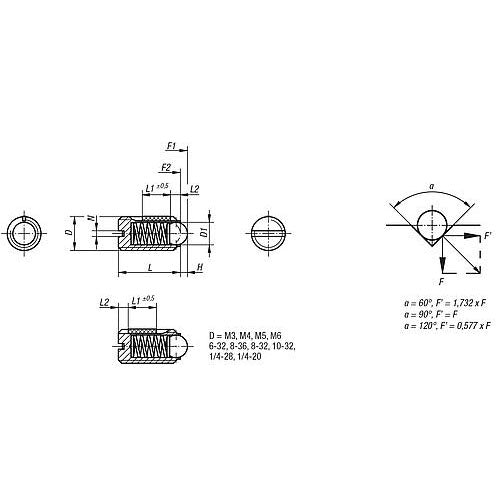

Material: Body steel quality class 5.8. Ball steel. Spring Class D steel wire. LONG-LOK thread lock Nylon. Type: Black oxide finish. Ball hardened. Part Number Example: K0321.AD Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch
Main Material: Steel
Version 1: With Thread Lock
Item: Spring Plunger
Rohs: Yes
Packaging Unit: 5
Pin Style: Ball
Carrier Style: Slot
Loosening Torque Approx. Nm: 1.36
D: 1/2-13
D1: 8
Tightening Torque Approx. Nm: 2.03
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 30
Spring Force Final Pressure F2 Approx. N: 55
H: 2.5
L: 22
L1: 10
N: 2
