Brand: Kipp
KIPP K0321.08 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M08 L=16, STEEL, COMP:BALL STEEL, PU=10
SKU: KP-K0321.08
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

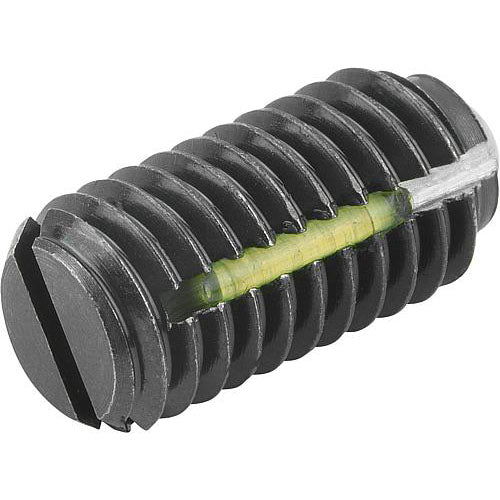

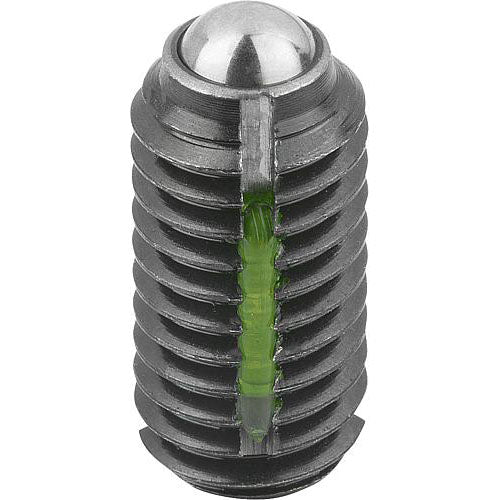

Spring Plungers with thread lock ball style, slotted, steel, standard end pressure, metric

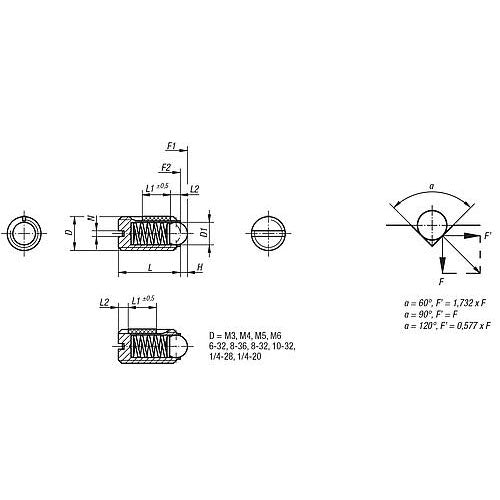

Material: Body in steel quality class 5.8. Ball in steel. Spring in spring steel class D. LONG-LOK thread system nylon Type: Black oxide finish. Ball hardened. L2 = approx. 2x thread pitch
| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 10 |
| Pin Style: | Ball |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 0.37 |
| D: | M8 |
| D1: | 5 |
| Tightening Torque Approx. Nm: | 1.09 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 15 |
| Spring Force Final Pressure F2 Approx. N: | 30 |
| H: | 1.5 |
| L: | 16 |
| L1: | 8 |
| N: | 1.2 |
