Brand: Kipp

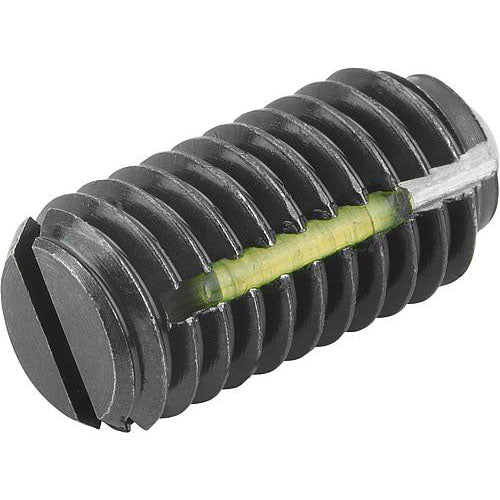

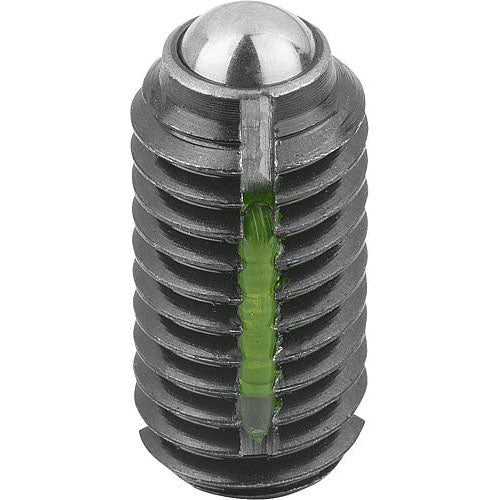

KIPP K0321.05 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M05 L=12, STEEL, COMP:BALL STEEL
SKU: KP-K0321.05
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock ball style, slotted, steel, standard end pressure, metric
Material: Body in steel quality class 5.8. Ball in steel. Spring in spring steel class D. LONG-LOK thread system nylon Type: Black oxide finish. Ball hardened. L2 = approx. 2x thread pitch
| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Pin Style: | Ball |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 0.08 |

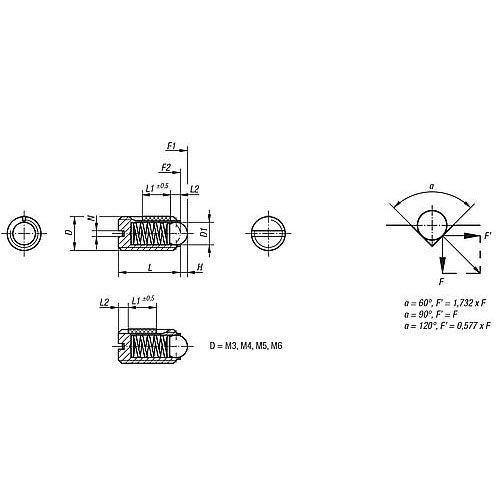

| D: | M5 |
| D1: | 3 |
| Tightening Torque Approx. Nm: | 0.12 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 6 |
| Spring Force Final Pressure F2 Approx. N: | 11 |
| H: | 0.9 |
| L: | 12 |
| L1: | 6 |
| N: | 0.8 |
