Brand: Kipp
KIPP K0319.A4 SPRING PLUNGER STANDARD SPRING FORCE D=3/8-16 L=22, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
SKU: KP-K0319.A4
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

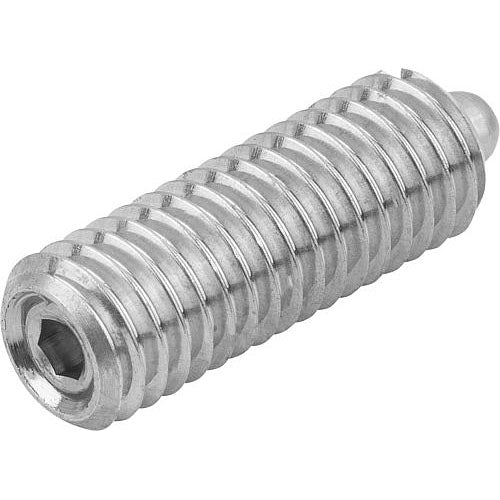

Spring Plungers pin style, hexagon socket, stainless steel body and pin, standard end pressure, inch

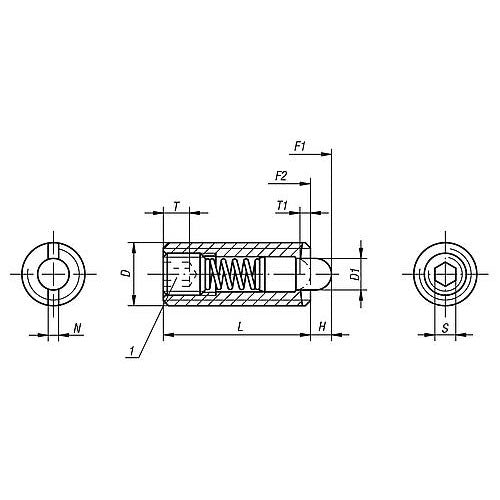

Material: body 1.4305 (AISI 303 equivalent). Thrust pin 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). Type: Bright. Thrust pin hardened. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in
| Main Material: | Stainless Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 5 |
| D: | 3/8-16 |
| D1: | 4 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 8 |
| Spring Force Final Pressure F2 Approx. N: | 31 |
| H: | 3 |
| L: | 22 |
| N: | 1.6 |
| S: | 1/8 |
| T: | 3.5 |
| T1: | 1.4 |
