Brand: Kipp

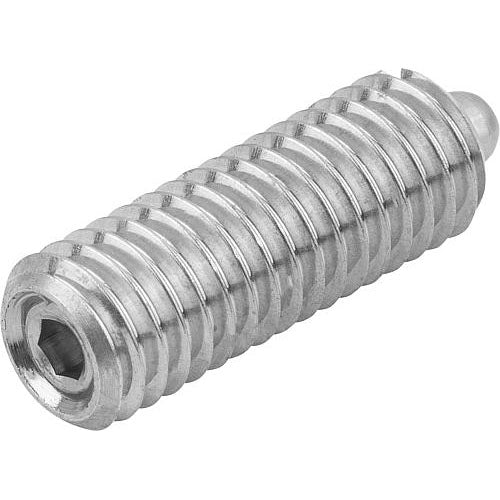

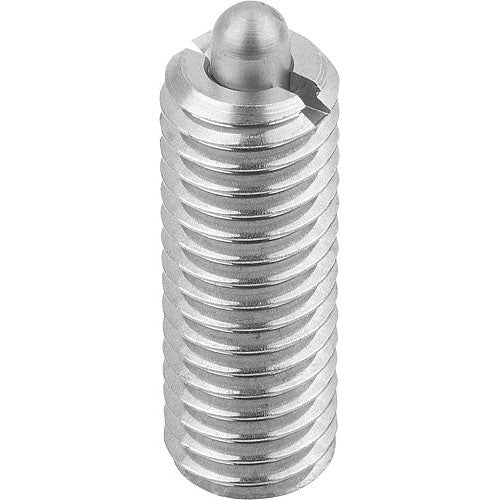

KIPP K0319.04 SPRING PLUNGER STANDARD SPRING FORCE D=M04 L=15, STAINLESS STEEL, COMP:PIN STAINLESS STEEL
SKU: KP-K0319.04
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

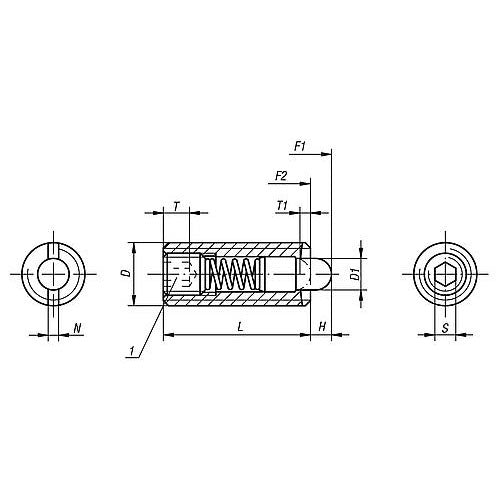

Spring Plungers pin style, hexagon socket, stainless steel body and pin, standard end pressure, metric
| Main Material: | Stainless Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Pin Style: | Thrust Pin |
| Carrier Style: | Hexagon Socket |
| D: | M4 |
| D1: | 1.5 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 5 |
| Spring Force Final Pressure F2 Approx. N: | 16 |
| H: | 1.5 |
| L: | 15 |
| Assembly Key G: | 14 |
| N: | 0.6 |
| S: | 1.3 |
| T: | 2 |
| T1: | 0.6 |
