Brand: Kipp
KIPP K0318.AJ SPRING PLUNGER STANDARD SPRING FORCE D=1/4-28 L=20, STEEL, COMP:PIN POM, PU=25
SKU: KP-K0318.AJ
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

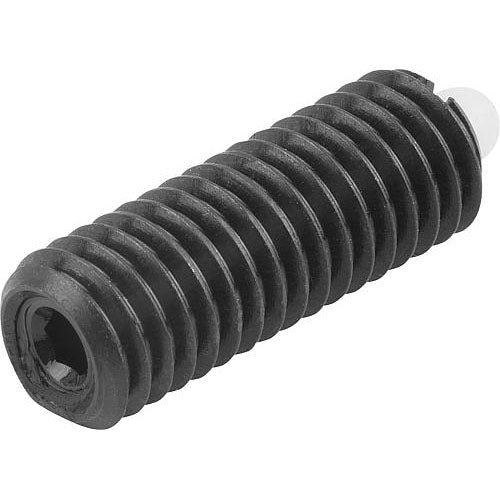

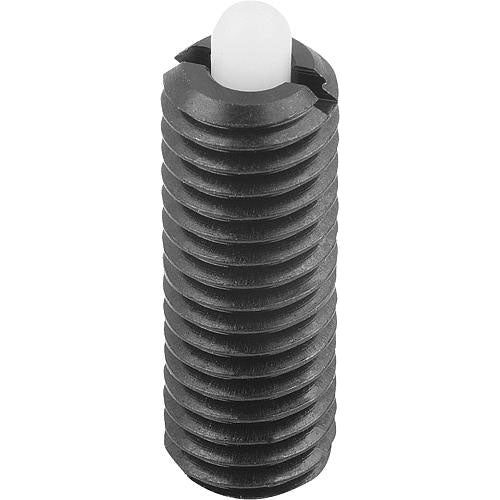

Spring Plungers pin style, hexagon socket, plastic pin, standard end pressure, inch

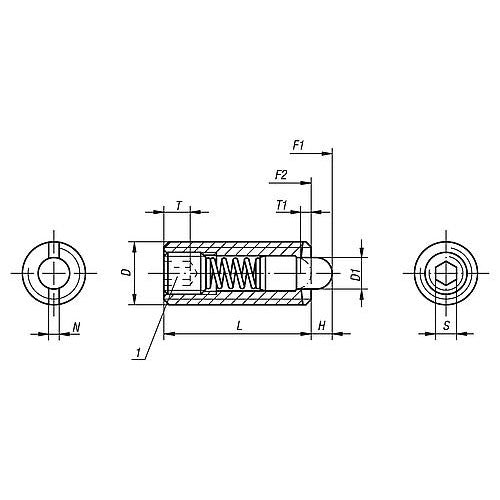

Material: body steel grade 5.8. Thrust pin POM. Spring grade D steel wire. Type: Black oxidized. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in
| Main Material: | Steel |
| Item: | Spring Plunger |
| Packaging Unit: | 25 |
| D: | 1/4-28 |
| D1: | 2.7 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 7 |
| Spring Force Final Pressure F2 Approx. N: | 20 |
| H: | 2.5 |
| L: | 20 |
| N: | 1 |
| S: | 5/64 |
| T: | 2.5 |
| T1: | 1 |
