Brand: Kipp
KIPP K0318.1AG SPRING PLUNGER LIGHT SPRING FORCE D=8-36 L=15, STEEL, COMP:PIN POM, PU=25
SKU: KP-K0318.1AG
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

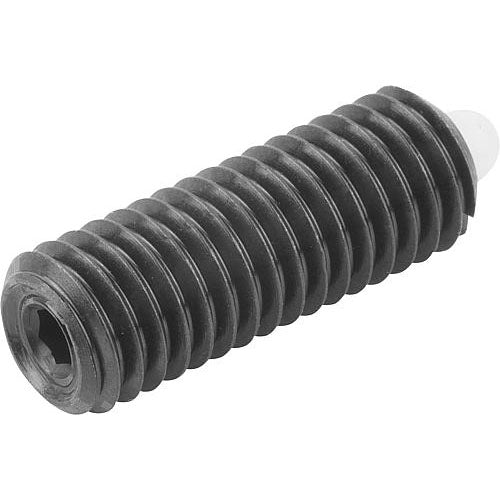

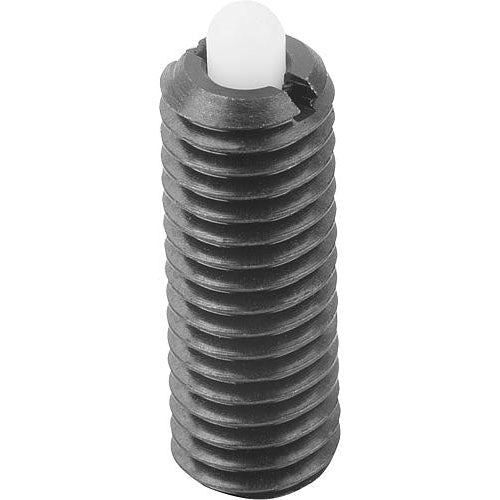

Spring Plungers pin style, hexagon socket, plastic pin, light end pressure, inch

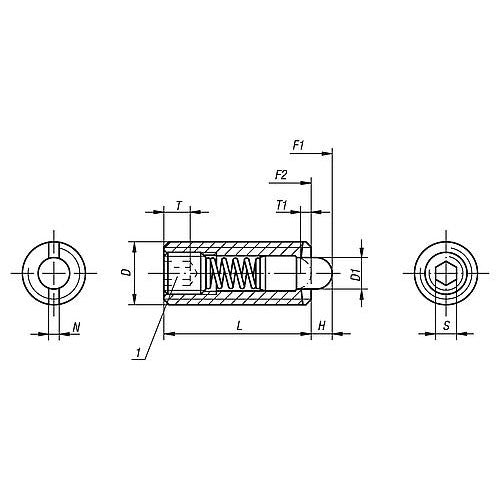

Material: Body steel quality class 5.8. Thrust pin POM. Spring Class D steel wire. Type: Black oxide finish. Part Number Example: K0318.AD Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in
| Main Material: | Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 25 |
| D: | 8-36 |
| D1: | 1.5 |
| Spring Strength: | Light |
| Spring Force Initial Pressure F1 Approx. N: | 2 |
| Spring Force Final Pressure F2 Approx. N: | 7 |
| H: | 1.5 |
| L: | 15 |
| N: | 0.6 |
| S: | 0.05 |
| T: | 2 |
| T1: | 0.6 |
