Brand: Kipp
KIPP K0317.1A5 SPRING PLUNGER LIGHT SPRING FORCE D=1/2-13 L=28, STEEL, COMP:PIN STEEL, PU=10
SKU: KP-K0317.1A5
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

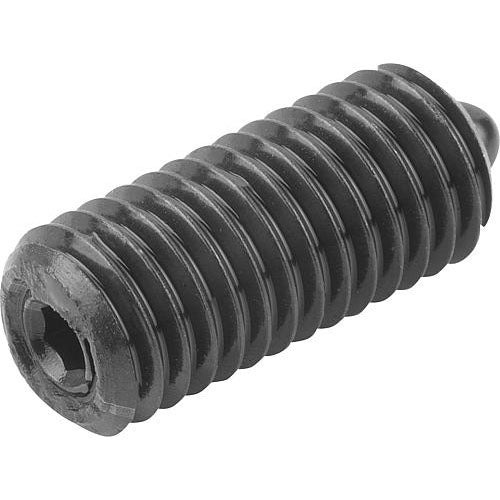

Spring Plungers pin style, hexagon socket, steel pin, light end pressure, inch

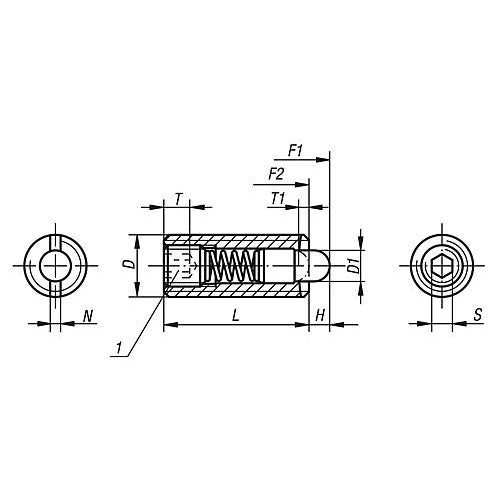

Material: Body steel quality class 5.8. Thrust pin steel. Spring Class D steel wire. Type: Black oxide finish. Thrust pin hardened. Part Number Example: K0317.AD Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in
| Main Material: | Steel |
| Item: | Spring Plunger |
| Packaging Unit: | 10 |
| D: | 1/2-13 |
| D1: | 6 |
| Spring Strength: | Light |
| Spring Force Initial Pressure F1 Approx. N: | 5 |
| Spring Force Final Pressure F2 Approx. N: | 27 |
| H: | 4 |
| L: | 28 |
| N: | 2 |
| S: | 5/32 |
| T: | 5 |
| T1: | 2 |
