Brand: Kipp

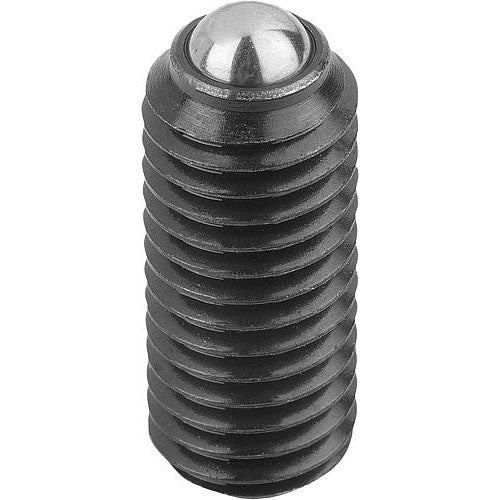

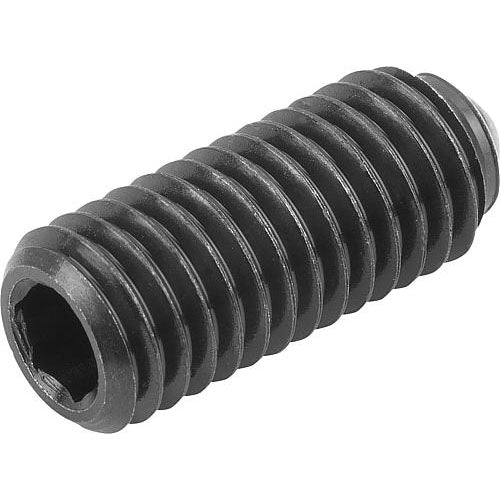

KIPP K0315.A2 SPRING PLUNGER STANDARD SPRING FORCE D=1/4-20 L=15, STEEL, COMP:BALL STEEL, PU=25
SKU: KP-K0315.A2
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers ball style, hexagon socket, steel, standard end pressure, inch
Material: Body steel quality class 5.8. Ball steel. Spring Class D steel wire. Type: Black oxide finish. Ball hardened. Part Number Example: K0315.AJ Note: For the inch series, dimension D is in inches, all other dimensions are in mm.
| Main Material: | Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 25 |

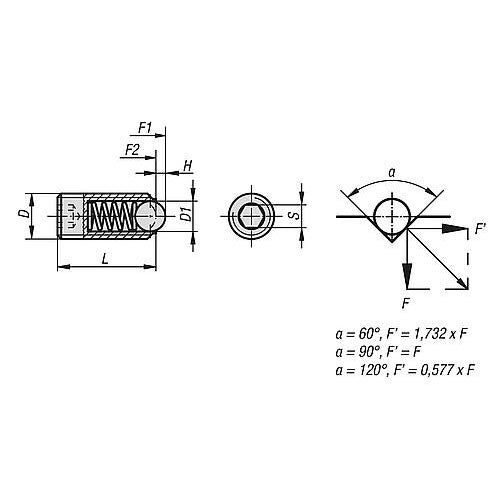

| D: | 1/4-20 |
| D1: | 3.5 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 9 |
| Spring Force Final Pressure F2 Approx. N: | 13 |
| H: | 1 |
| L: | 15 |
| S: | 1/8 |
