Brand: Kipp
KIPP K0314.A5 SPRING PLUNGER STANDARD SPRING FORCE D=1/2-13 L=22, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
SKU: KP-K0314.A5
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers pin style, slotted, stainless steel, standard end pressure, inch

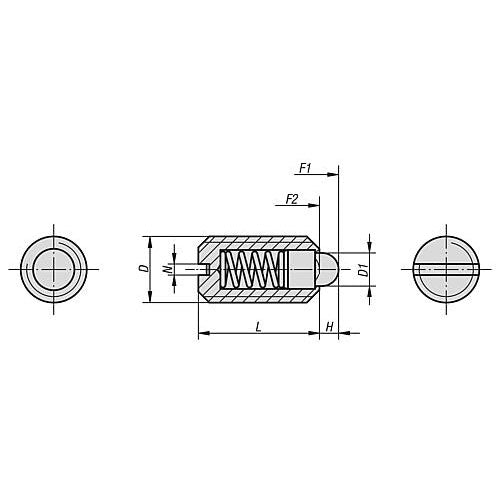

Material: Type: Bright. Thrust pin hardened. Part Number Example: K0314.AG Note: For the inch series, dimension D is in inches, all other dimensions are in mm.
| Main Material: | Stainless Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 5 |
| D: | 1/2-13 |
| D1: | 6 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 30 |
| Spring Force Final Pressure F2 Approx. N: | 55 |
| H: | 3.5 |
| L: | 22 |
| N: | 2 |
