Brand: Kipp

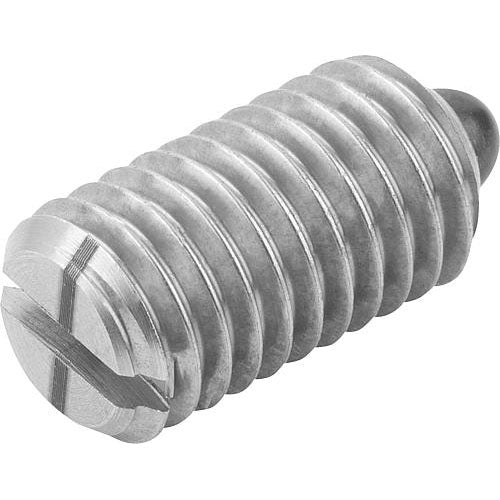

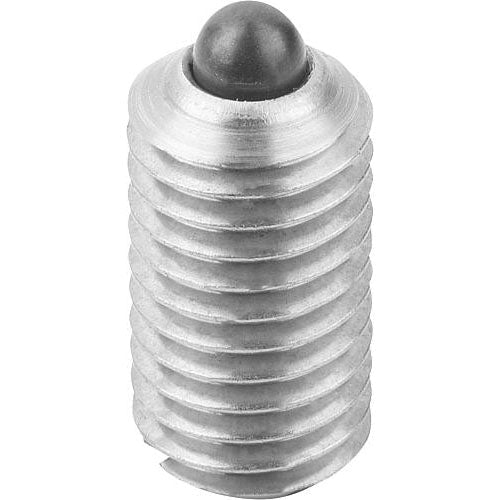

KIPP K0314.1A4 SPRING PLUNGER LIGHT SPRING FORCE D=3/8-16 L=19, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=10
SKU: KP-K0314.1A4
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers pin style, slotted, stainless steel, light end pressure, inch
Material: Type: Bright. Thrust pin hardened. Part Number Example: K0314.AG Note: For the inch series, dimension D is in inches, all other dimensions are in mm.
| Main Material: | Stainless Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 10 |

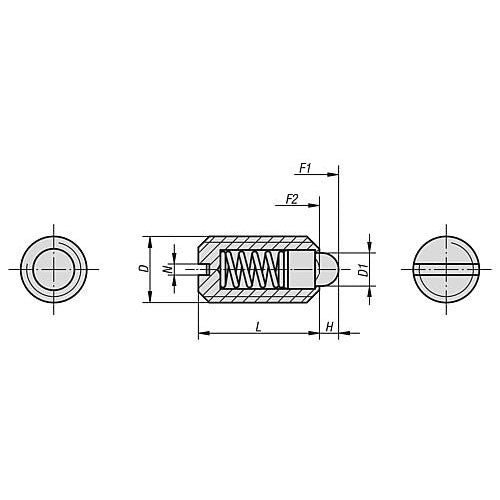

| D: | 3/8-16 |
| D1: | 4.5 |
| Spring Strength: | Light |
| Spring Force Initial Pressure F1 Approx. N: | 9 |
| Spring Force Final Pressure F2 Approx. N: | 16 |
| H: | 2.5 |
| L: | 19 |
| N: | 1.6 |
