Brand: Kipp
KIPP K0314.10 SPRING PLUNGER STANDARD SPRING FORCE D=M10 L=19, STAINLESS STEEL, COMP:PIN STAINLESS STEEL
SKU: KP-K0314.10
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

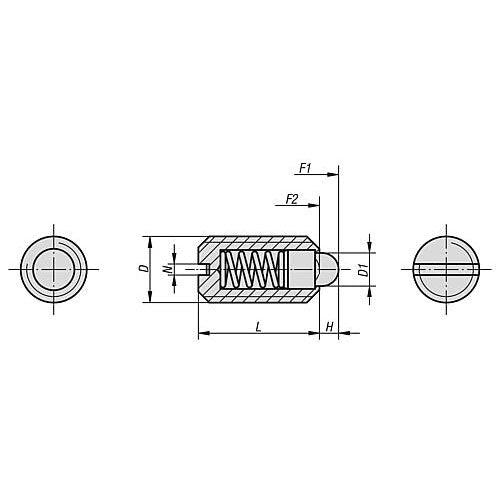

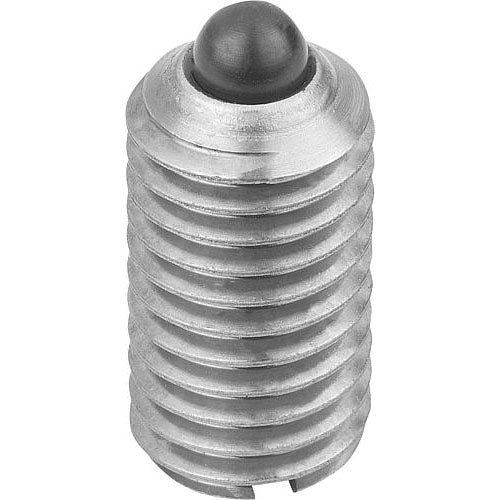

Spring Plungers pin style, slotted, stainless steel, standard end pressure, metric
Material: body 1.4305 (AISI 303 equivalent). Thrust pin 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). Type: Bright. Thrust pin hardened.
| Main Material: | Stainless Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Pin Style: | Thrust Pin |
| Carrier Style: | Slot |
| D: | M10 |
| D1: | 4.5 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 20 |
| Spring Force Final Pressure F2 Approx. N: | 35 |
| H: | 2.5 |
| L: | 19 |
| N: | 1.6 |
