KIPP K0313.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11, L=24, STEEL, COMP:PIN STEEL, PU=10
KIPP K0313.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11, L=24, STEEL, COMP:PIN STEEL, PU=10
KIPP K0313.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11, L=24, STEEL, COMP:PIN STEEL, PU=10

Brand: Kipp

KIPP K0313.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11, L=24, STEEL, COMP:PIN STEEL, PU=10

SKU: KP-K0313.A6
MPN: K0313.A6

Only 0 left!
Please Email SALES For Pricing

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

KIPP K0313.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11, L=24, STEEL, COMP:PIN STEEL, PU=10
Spring Plungers pin style, slotted, steel, standard end pressure, inch
Material: Body steel quality class 5.8. Thrust pin steel. Spring Class D steel wire. Type: Black oxide finish. Thrust pin hardened. Part Number Example: K0313.AG Note: For the inch series, dimension D is in inches, all other dimensions are in mm.
Main Material: Steel
Item: Spring Plunger
Rohs: Yes
Packaging Unit: 10

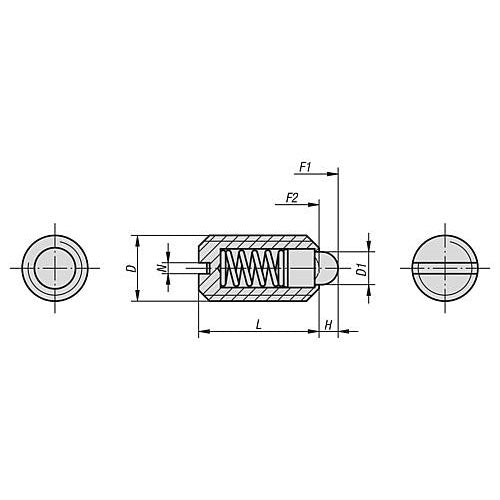

D: 5/8-11
D1: 8.5
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 45
Spring Force Final Pressure F2 Approx. N: 100
H: 4.5
L: 24
N: 2.5
