Brand: Kipp

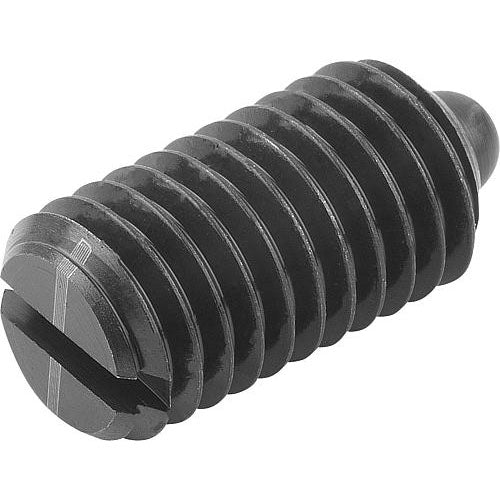

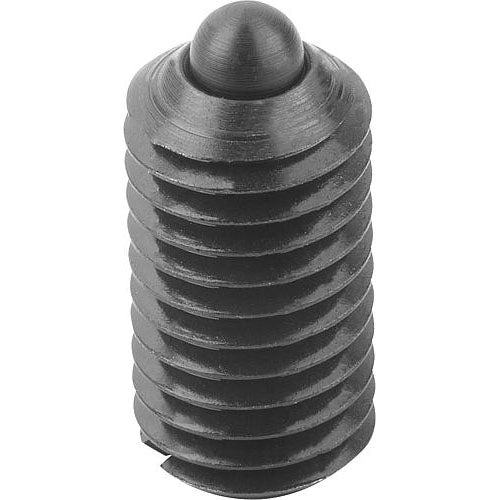

KIPP K0313.1A1 SPRING PLUNGER LIGHT SPRING FORCE D=10-32, L=12, STEEL, COMP:PIN STEEL, PU=25
SKU: KP-K0313.1A1
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers pin style, slotted, steel, light end pressure, inch
Material: Body steel quality class 5.8. Thrust pin steel. Spring Class D steel wire. Type: Black oxide finish. Thrust pin hardened. Part Number Example: K0313.AG Note: For the inch series, dimension D is in inches, all other dimensions are in mm.
| Main Material: | Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 25 |

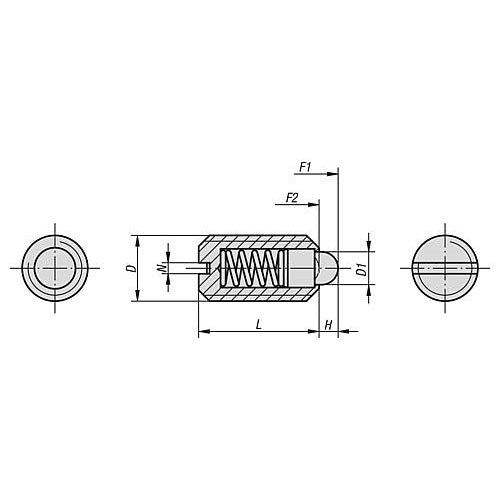

| D: | 10-32 |
| D1: | 2.4 |
| Spring Strength: | Light |
| Spring Force Initial Pressure F1 Approx. N: | 3 |
| Spring Force Final Pressure F2 Approx. N: | 10 |
| H: | 2 |
| L: | 12 |
| N: | 0.8 |
