Brand: Kipp
KIPP K0309.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11 L=24, STEEL, COMP:BALL STEEL
SKU: KP-K0309.A6
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

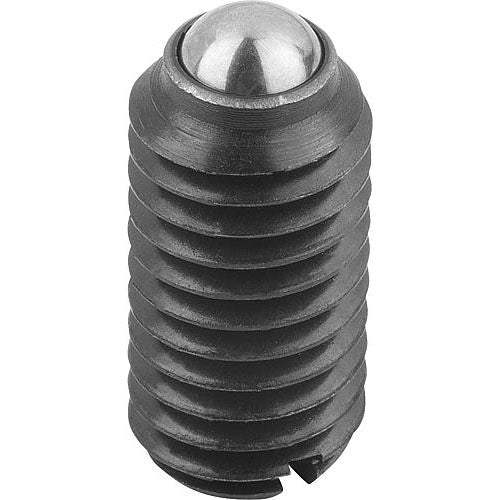

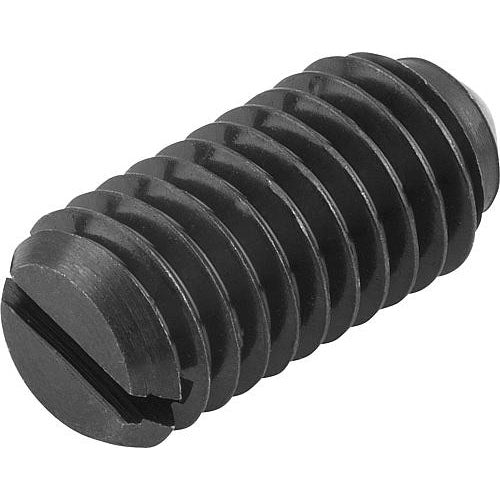

Spring Plungers ball style, slotted, steel, standard end pressure, inch
Material: body steel grade 5.8. Ball steel. Spring grade D steel wire. Type: Black oxidized. Ball hardened. Note: For the inch series, dimension D is in inches, all other dimensions are in mm.
| Main Material: | Steel |
| Item: | Spring Plunger |
| Rohs: | No |
| Pin Style: | Ball |
| Carrier Style: | Slot |

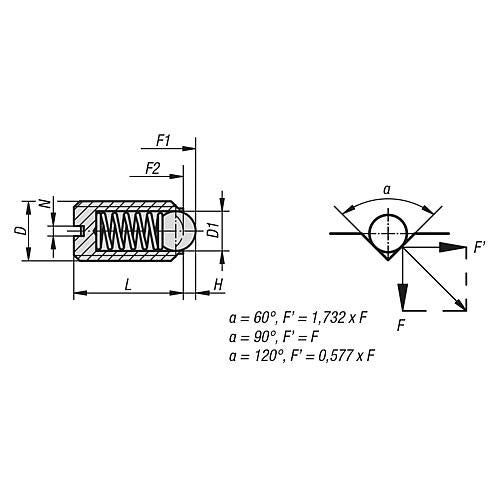

| D: | 5/8-11 |
| D1: | 10 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 65 |
| Spring Force Final Pressure F2 Approx. N: | 125 |
| H: | 3.5 |
| L: | 24 |
| N: | 2.5 |
