Brand: DESTACO

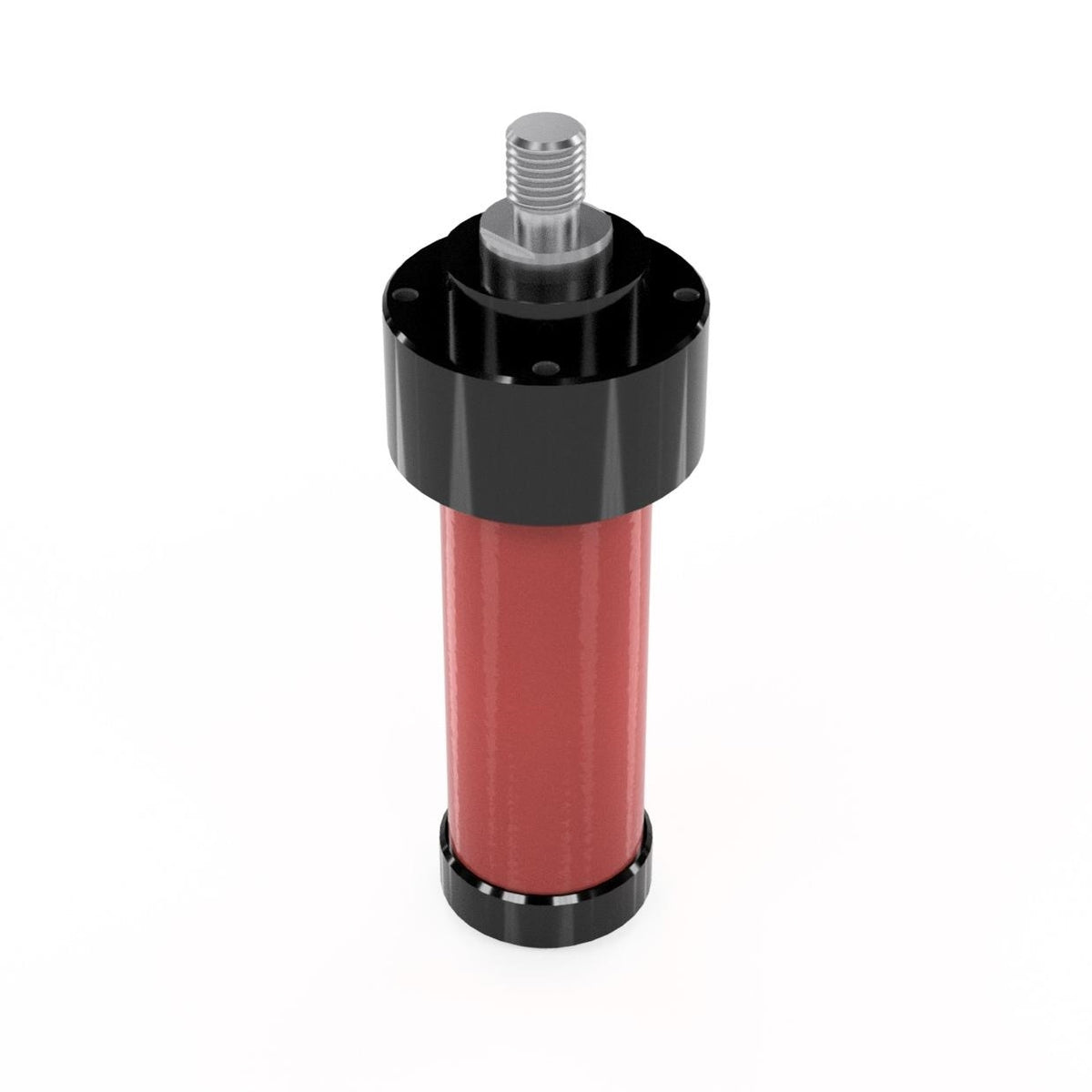

DESTACO K4500-15-6-1 - PNEUMATIC POWER CYLINDER
SKU: DE-STA-CO-K4500-15-6-1
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the unprecedented power and precision of the DESTACO K4500-15-6-1 PNEUMATIC POWER CYLINDER. With a 10:1 mechanical advantage, this cylinder utilizes the innovative wedge lever principle to provide superior performance for machines, tools, and devices. Its two-step stroke, including the forward stroke and power stroke with an impressive 45 kN amplified force, allows for precise and efficient movements. Plus, with a male thread piston rod and flange mount, this cylinder ensures exact positioning and can be used in any orientation. Its solid and maintenance-free wedge lever mechanics make it highly durable, while magnetic field sensing allows for easy end position control. Trust in the DESTACO PNEUMATIC POWER CYLINDER to elevate your productivity and efficiency to new heights!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO K4500-15-6-1 - PNEUMATIC POWER CYLINDER
Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (45 kN). Piston rod with male thread.
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance-free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.
| Max. Clamping Force (lbsf) | 10,116 |
| Forward Stroke (in) | 0.590 |
| Cylinder Bore (in) | 3.94 |
| Power Stroke (in) | 0.236 |
| Temperature Range | -5 to 75°C (23 to 167°F) |
| Product Type | Piston Rod with External Thread |
| Piston force within forwarding stroke at 6 bar (lbf) | 944 |
| Air Consumption per double stroke at 6 bar (ft³) | 6.180 |
| Air Consumption per double stroke at 87 psi (ft³) | 0.22 |
| Stroke Frequency depending on total stroke (per minute) | 5 to 25 |
| Weight (lb) | 29.30 |
| Product Series Description | Power Cylinder |
| Product Function | Clamping |
| Product Family | Heavy-Duty Pneumatic Clamping |
| Product Group | pneumatic power cylinder |
