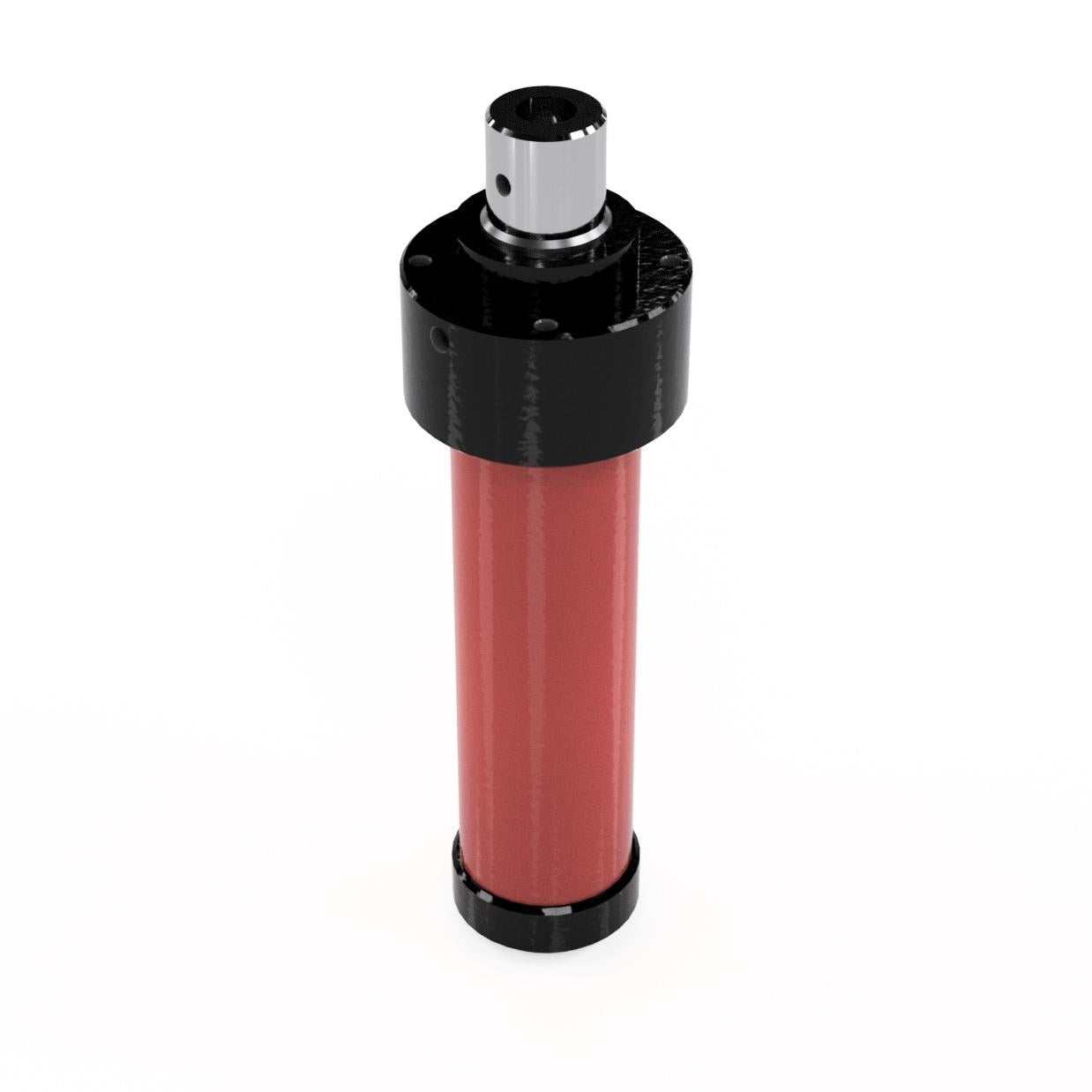

DESTACO WK400-70-6-A - PNEUMATIC POWER CYLINDER

Brand: DESTACO

DESTACO WK400-70-6-A - PNEUMATIC POWER CYLINDER

SKU: DE-STA-CO-WK400-70-6-A
MPN: WK400-70-6-A

  • $1,787.08
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

DESTACO WK400-70-6-A - PNEUMATIC POWER CYLINDER
Power element of machines, tool and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (4 kN). Piston rod with ISO fit.
10:1 mechanical advantage
Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
Exact positioning of cylinder by flange mount on cylinder's head
Cylinder works in any positionHigh durability because of solid and maintenance free wedge lever mechanics.
End position control by magnetic field sensing

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO WK400-70-6-A - PNEUMATIC POWER CYLINDER

Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (4 kN). Piston rod with ISO fit.

  • 10:1 mechanical advantage
  • Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
  • Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
  • The cylinder works in any position
  • High durability because of solid and maintenance-free wedge lever mechanics.
  • End position control by magnetic field sensing

Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.

Max. Clamping Force (lbsf) 899
Forward Stroke (in) 2.760
Cylinder Bore (in) 1.75
Power Stroke (in) 0.236
Temperature Range -5 to 75°C (23 to 167°F)
Product Type Piston Rod with ISO Fit
Piston force within forwarding stroke at 6 bar (lbf) 153
Air Consumption per double stroke at 6 bar (ft³) 1.380
Air Consumption per double stroke at 87 psi (ft³) 0.05
Stroke Frequency depending on total stroke (per minute) 5 to 30
End position control by magnetic field sensors Yes
Weight (lb) 3.00
Product Series Description Power Cylinder
Product Function Clamping
Product Family Heavy-Duty Pneumatic Clamping
Product Group pneumatic power cylinder
