Brand: DESTACO

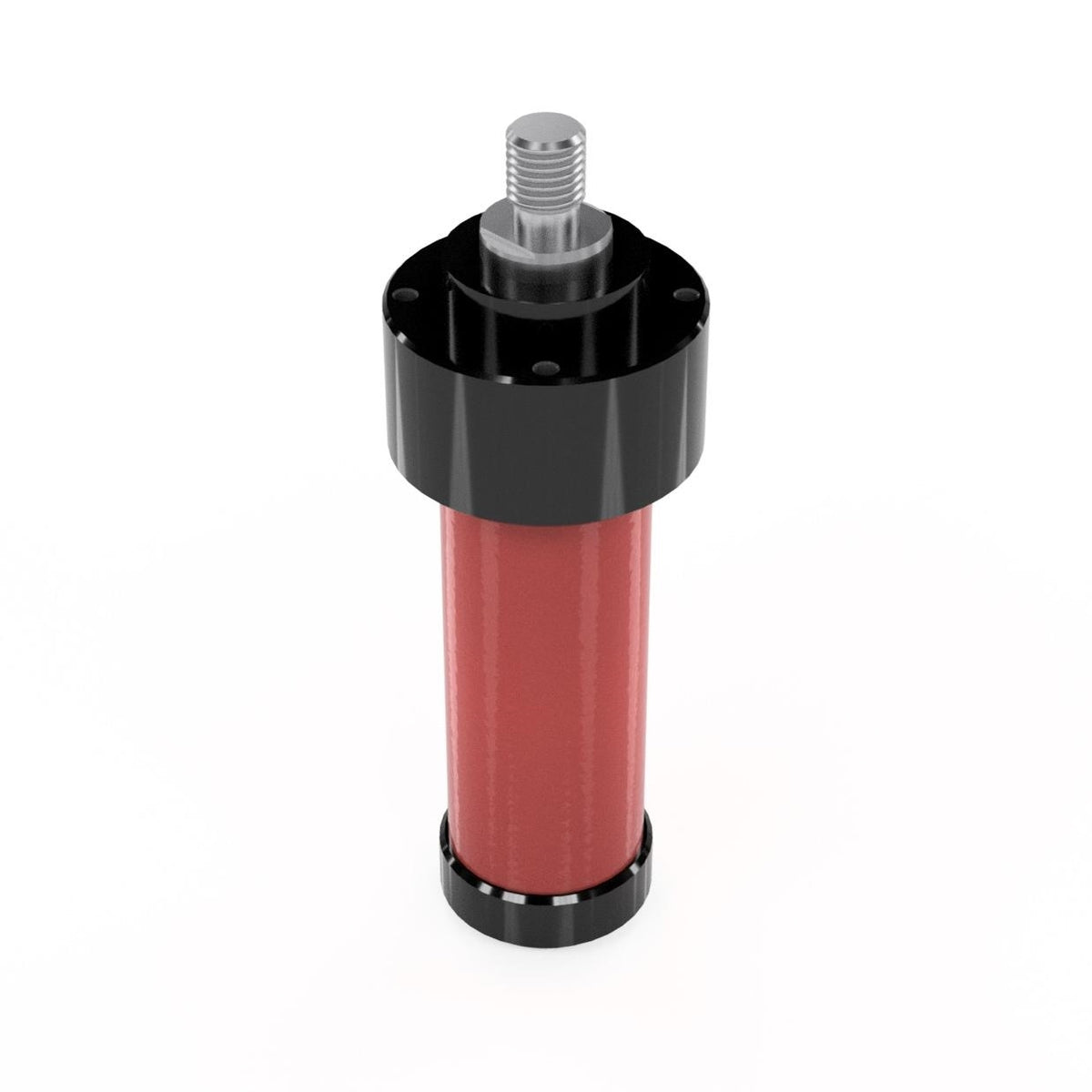

DESTACO K400-15-6-1 - PNEUMATIC POWER CYLINDER
SKU: DE-STA-CO-K400-15-6-1
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance the performance of your machines, tools, and devices with the revolutionary DESTACO K400-15-6-1 - PNEUMATIC POWER CYLINDER! This powerful unit utilizes the wedge lever principle to provide a mechanical advantage of 10:1. Experience two seamless steps of stroke - a forward and power stroke with an amplified force of 4 kN. The piston rod features a male thread for easy usage. Impressive design allows for precise positioning with a flange mount on the cylinder's head. No matter the position, this cylinder delivers high durability with its solid, maintenance-free wedge lever mechanics. Ensure accurate end positioning with the innovative magnetic field sensing technology. Upgrade your operations with the DESTACO K400-15-6-1 - PNEUMATIC POWER CYLINDER today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO K400-15-6-1 - PNEUMATIC POWER CYLINDER
Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (4 kN). Piston rod with male thread.
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance-free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.
| Max. Clamping Force (lbsf) | 899 |
| Forward Stroke (in) | 0.590 |
| Cylinder Bore (in) | 1.75 |
| Power Stroke (in) | 0.236 |
| Temperature Range | -5 to 75°C (23 to 167°F) |
| Product Type | Piston Rod with External Thread |
| Piston force within forward stroke at 6 bar (lbf) | 153 |
| Air Consumption per double stroke at 6 bar (ft³) | 0.710 |
| Air Consumption per double stroke at 87 psi (ft³) | 0.03 |
| Stroke Frequency depending on total stroke (per minute) | 5 to 30 |
| Weight (lb) | 2.60 |
| Product Series Description | Power Cylinder |
| Product Function | Clamping |
| Product Family | Heavy-Duty Pneumatic Clamping |
| Product Group | pneumatic power cylinder |
