Brand: DESTACO

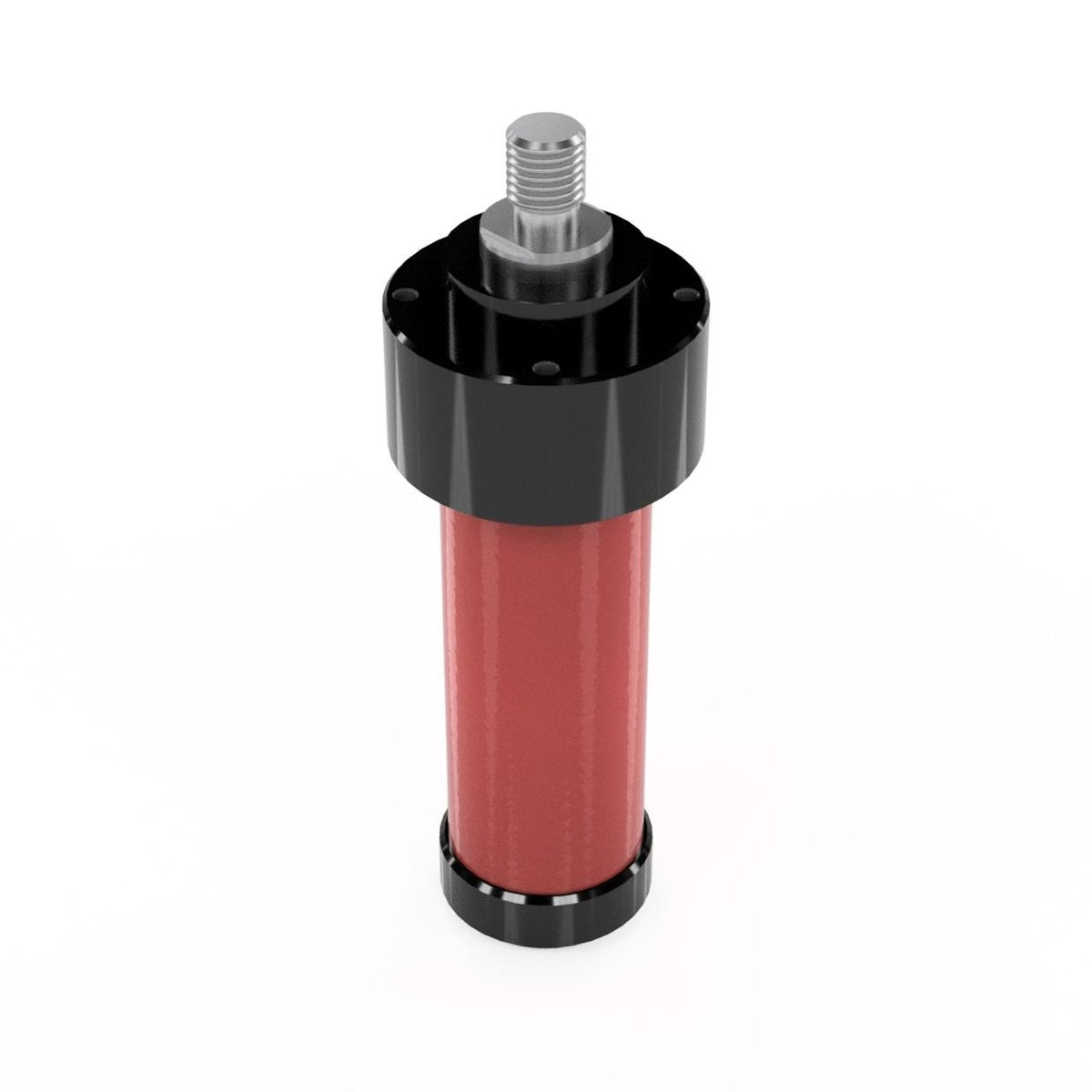

DESTACO K3000-70-6-A - POWER CYLINDER-TYPE K-30KN-70MM STROKE W/SENSORS
SKU: DE-STA-CO-K3000-70-6-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO K3000-70-6-A - POWER CYLINDER-TYPE K-30KN-70MM STROKE W/SENSORSPower element of machines, tool and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (30 kN). Piston rod with male thread.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACOK3000-70-6-A -POWER CYLINDER-TYPE K-30KN-70MM STROKE W/SENSORS
Power element of machines, tool and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (30 kN). Piston rod with male thread.
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of cylinder by flange mount on cylinder‚¬„¢s head
- Cylinder works in any position
- High durability because of solid and maintenance free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. Piston rod is not secured against twisting and should not be loaded transversal.
Max. Clamping Force (lbsf) | 6,744 |
Forward Stroke (in) | 2.760 |
Cylinder Bore (in) | 3.35 |
Power Stroke (in) | 0.236 |
Temperature Range | -5 to 75°C (23 to 167°F) |
Product Type | Piston Rod with External Thread |
Piston force within forward stroke at 6 bar (lbf) | 674 |
Air Consumption per double stroke at 6 bar (ft³) | 7.130 |
Air Consumption per double stroke at 87 psi (ft³) | 0.25 |
Stroke Frequency depending on total stroke (per minute) | 5 to 25 |
End position control by magnetic field sensors | Yes |
Weight (lb) | 31.50 |
Product Series Description | Power Cylinder |
Product Function | Clamping |
Product Family | Heavy-Duty Pneumatic Clamping |
Product Group | pneumatic power cylinder |
