Brand: DESTACO

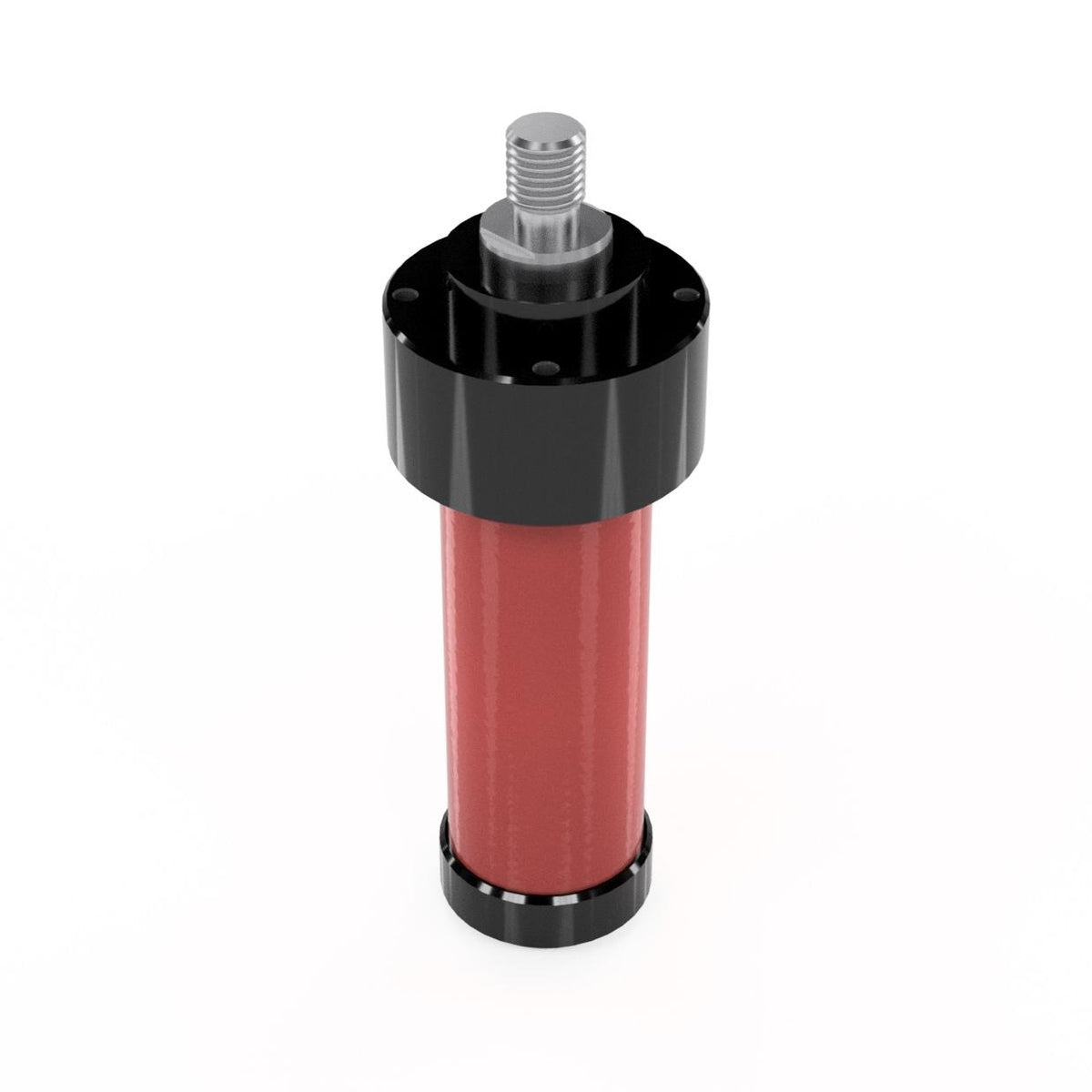

DESTACO K3000-50-6-1 - PNEUMATIC POWER CYLINDER
SKU: DE-STA-CO-K3000-50-6-1
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This pneumatic power cylinder, the DESTACO K3000-50-6-1, is an invaluable element for machines, tools, and devices. Powered by the wedge lever principle, it offers a mechanical advantage of 10:1. What sets it apart is its unique two-step stroke - a forward motion to cover a distance, followed by a power stroke that delivers an amplified force of 30 kN. The piston rod features a male thread for secure attachment. Additionally, its solid wedge lever mechanics, working in any position, provide an astounding level of durability, with maintenance-free operation. The cylinder can be precisely positioned by flange mounting on the head, and end position is easily controlled thanks to magnetic field sensing technology.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO K3000-50-6-1 - PNEUMATIC POWER CYLINDER
Power element of machines, tools and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (30 kN). Piston rod with male thread.
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance-free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.
| Max. Clamping Force (lbsf) | 6,744 |
| Forward Stroke (in) | 1.970 |
| Cylinder Bore (in) | 3.35 |
| Power Stroke (in) | 0.236 |
| Temperature Range | -5 to 75°C (23 to 167°F) |
| Product Type | Piston Rod with External Thread |
| Piston force within forward stroke at 6 bar (lbf) | 674 |
| Air Consumption per double stroke at 6 bar (ft³) | 6.170 |
| Air Consumption per double stroke at 87 psi (ft³) | 0.22 |
| Stroke Frequency depending on total stroke (per minute) | 5 to 25 |
| Weight (lb) | 29.50 |
| Product Series Description | Power Cylinder |
| Product Function | Clamping |
| Product Family | Heavy-Duty Pneumatic Clamping |
| Product Group | pneumatic power cylinder |
