Brand: DESTACO

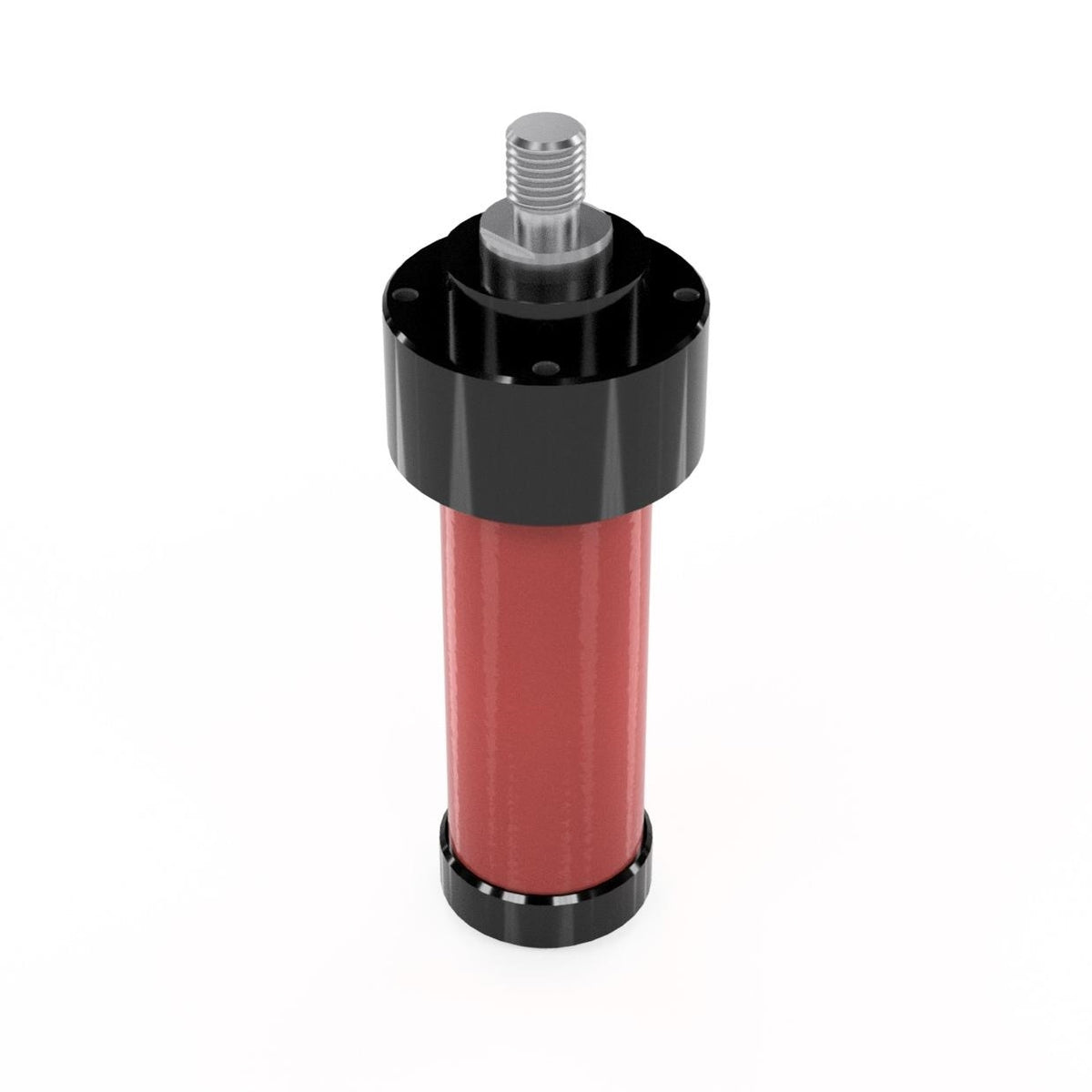

DESTACO K3000-200-6-A - PNEUMATIC POWER CYLINDER
SKU: DE-STA-CO-K3000-200-6-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO K3000-200-6-A - PNEUMATIC POWER CYLINDERPower element of machines, tool and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (30 kN). Piston rod with male thread.
10:1 mechanical advantage
Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
Exact positioning of cylinder by flange mount on cylinder's head
Cylinder works in any position
High durability because of solid and maintenance free wedge lever mechanics.
End position control by magnetic field sensing
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO K3000-200-6-A - PNEUMATIC POWER CYLINDER
Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (30 kN). Piston rod with male thread.
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance-free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.
Max. Clamping Force (lbsf) | 6,744 |
Forward Stroke (in) | 7.870 |
Cylinder Bore (in) | 3.35 |
Power Stroke (in) | 0.236 |
Temperature Range | -5 to 75°C (23 to 167°F) |
Product Type | Piston Rod with External Thread |
Piston force within forwarding stroke at 6 bar (lbf) | 674 |
Air Consumption per double stroke at 6 bar (ft³) | 13.400 |
Air Consumption per double stroke at 87 psi (ft³) | 0.47 |
Stroke Frequency depending on total stroke (per minute) | 5 to 25 |
End position control by magnetic field sensors | Yes |
Weight (lb) | 44.50 |
Product Series Description | Power Cylinder |
Product Function | Clamping |
Product Family | Heavy-Duty Pneumatic Clamping |
Product Group | pneumatic power cylinder |
