Brand: DESTACO

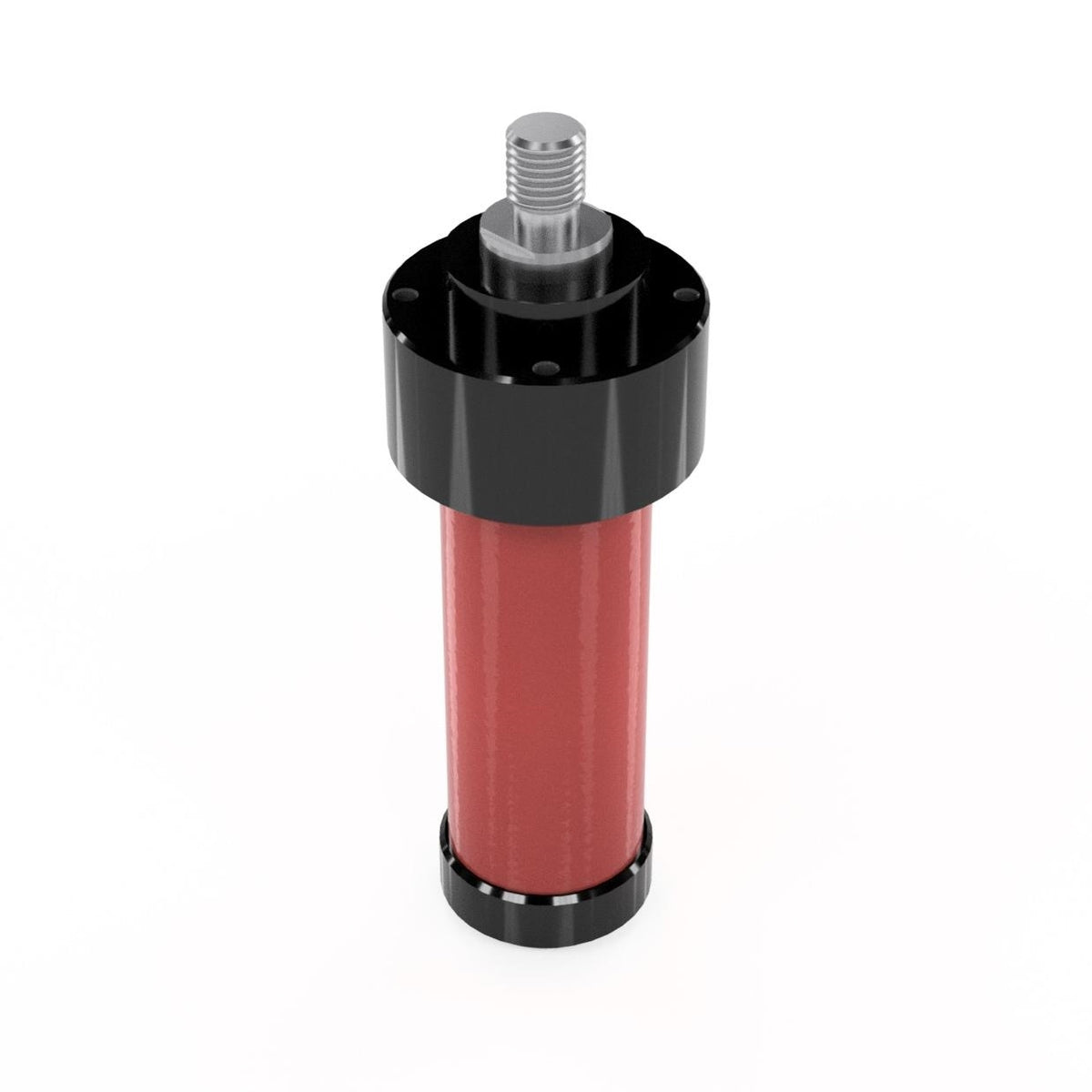

DESTACO K1000-70-7-A - PNEUMATIC POWER CYLINDER
SKU: DE-STA-CO-K1000-70-7-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance the performance of your machines, tools, and devices with the DESTACO K1000-70-7-A PNEUMATIC POWER CYLINDER. Experience a mechanical advantage of 10:1, thanks to the innovative wedge lever principle. This unit features a two-step stroke, with a forward stroke and a power stroke that delivers an impressive force of 10 kN. The male-threaded piston rod ensures precise positioning, while the flange mount on the cylinder's head allows for exact placement. In any position, this cylinder guarantees optimal results and boasts high durability, thanks to its solid and maintenance-free mechanics. With magnetic field sensing, end position control is a breeze. Unleash the power of this powerful cylinder and elevate your productivity today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACOK1000-70-7-A- PNEUMATIC POWER CYLINDER
Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (10 kN). Piston rod with male thread.
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.
| Max. Clamping Force (lbsf) | 2,248 |
| Forward Stroke (in) | 2.760 |
| Cylinder Bore (in) | 2.48 |
| Power Stroke (in) | 0.276 |
| Temperature Range | -5 to 75°C (23 to 167°F) |
| Product Type | Piston Rod with External Thread |
| Piston force within forward stroke at 6 bar (lbf) | 393 |
| Air Consumption per double stroke at 6 bar (ft³) | 3.850 |
| Air Consumption per double stroke at 87 psi (ft³) | 0.14 |
| Stroke Frequency depending on total stroke (per minute) | 5 to 30 |
| End position control by magnetic field sensors | Yes |
| Weight (lb) | 9.70 |
| Product Series Description | Power Cylinder |
| Product Function | Clamping |
| Product Family | Heavy-Duty Pneumatic Clamping |
| Product Group | pneumatic power cylinder |
