Brand: INDUSTRIAL MAGNETICS

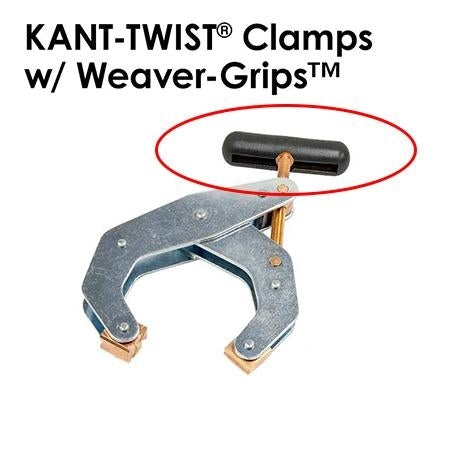

Industrial Magnetics MAG-MATE® Kant-Twist® 6" Deep-Reach High-Visibility Yellow With Weaver-Grip™ K060TDHVYW
SKU: IM-K060TDHVYW
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE Kant-Twist 6" Deep-Reach High-Visibility Yellow With Weaver-Grip K060TDHVYW. Kant-Twist Cantilever Clamps. Cantilever clamps that do not twist. KANT-TWIST Cantilever Clamps offer several advantages over standard C-Clamps - they're lighter, stronger and won't walk-off-center.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® Kant-Twist® 6" Deep-Reach High-Visibility Yellow With Weaver-Grip K060TDHVYW
Kant-Twist® Cantilever Clamps
Cantilever clamps that do not twist
KANT-TWIST® Cantilever Clamps offer several advantages over standard C-Clamps - they're lighter, stronger and won't walk-off-center! Perfect for spot welding, drilling, bolting - or anywhere you need to hold two pieces firmly together.
The KANT-TWIST's innovative cantilever design eliminates the problematic distorting and twisting of your work pieces and provides a strong, 4:1 clamp ratio. The free floating jaws easily adjust to uneven surfaces while offering three different gripping faces to meet your application needs; knurled, smooth and V-slot for holding round stock.
For welding applications, choose a KANT-TWIST® model with copper plated jaws, screw and handle to prevent weld spatter from sticking. If you need precise control over the holding pressure on your material, choose the "Round Handle" for fine tuning capability. The "Deep Reach Throat" model gives you farther reach onto your material for better holding and the "Stainless Steel" model is ideal for clamping material in corrosive or sanitary environments or for use in magnetic applications.
Non-marring clamps have soft round pads for holding soft materials like wood, plastic, synthetics, aluminum or fine finish/polished metals. No turning, twisting or digging into surfaces like screw-type clamps.
Features
- Won't walk off-center
- Much lighter than C-Clamps
- Greater clamping power
- Now available in Hi-Vis Colors
- Made in USA!
KANT-TWIST® Clamps | |||||||||||
Part No. | Part No. W/ Weaver-Grip | Max Jaw Capacity (in) | Throat Depth Open (in) | Throat Depth Closed (in) | Overall Length (in) | Width when Open (in) | Thickness (in) | Max Clamp Force (lbs) | Handle Diameter and Length(in) | Handle Diameter and Length W/Weaver-Grip (in) | Approximate Weight (lbs) |
---|---|---|---|---|---|---|---|---|---|---|---|
ROUND HANDLE with Copper Plated Jaws, Screw & Handle. Ideal for "Industrial Magnetics MAG-MATE® Kant-Twist® 6" Deep-Reach High-Visibility Yellow With Weaver-Grip™ K060TDHVYW"fine tuning"Industrial Magnetics MAG-MATE® Kant-Twist® 6" Deep-Reach High-Visibility Yellow With Weaver-Grip™ K060TDHVYW" clamping force | |||||||||||
K007R | N/A | 3/4 | 3/8 | 3/8 | 1-3/4 | 1-3/8 | 7/16 | 200 | 5/8 | N/A | 0.06 |
K010R | N/A | 1 | 1/2 | 1/2 | 2-1/4 | 1-7/8 | 1/2 | 350 | 3/4 | N/A | 0.1 |
K015R | N/A | 1-1/2 | 1 | 1 | 3-3/4 | 3-1/8 | 5/8 | 600 | 1-1/8 | N/A | 0.29 |
K020R | N/A | 2 | 1-1/4 | 1-1/4 | 4 | 3-1/4 | 7/8 | 800 | 1-1/8 | N/A | 0.46 |
K025RD | N/A | 2-1/2 | 1-3/4 | 1-13/16 | 4-1/2 | 4-1/16 | 7/8 | 700 | 1-1/8 | N/AN/A | 0.51 |
STANDARD with Copper Plated Jaws, Screw and T-Handle | |||||||||||
K010T | K010TW | 1 | 1/2 | 1/2 | 2-1/8 | 1-7/8 | 1/2 | 350 | 1/8 x 1 | 1/2 x 1-1/2 | 0.09 |
K020T | K020TW | 2 | 1-1/4 | 1-1/4 | 4 | 3-3/8 | 7/8 | 800 | 1/8 x 1-3/4 | 11/16 x 2-1/2 | 0.42 |
K030T | K030TW | 3 | 1-3/4 | 1-1/2 | 6-1/4 | 5-1/4 | 1-1/8 | 1500 | 1/4 x 3 | 7/8 x 4 | 1.15 |
K060T | K060TW | 6 | 2-1/8 | 3 | 9-1/4 | 8-1/2 | 1-3/8 | 2000 | 5/16 x 3-3/4 | 1-1/8 x 5 | 2.78 |
K090T | N/A | 9 | 3-3/4 | 4-3/4 | 14-1/2 | 13 | 1-5/8 | 2500 | 3/8 x 6 | N/A | 7.15 |
K120T | N/A | 12 | 5-1/2 | 6-1/2 | 17-3/4 | 16 | 2 | 6000 | 3/8 x 6 | N/A | 13.9 |
DEEP REACH with Copper Plated Jaws, Screw and T-Handle. Reach farther onto material | |||||||||||
K025TD | K025TDW | 2-1/2 | 1-3/4 | 1-13/16 | 4-1/2 | 4-1/16 | 7/8 | 700 | 1/8 x 1-3/4 | 11/16 x 2-1/2 | 0.51 |
K045TD | K045TDW | 4-1/2 | 2-3/8 | 2-5/8 | 7-1/2 | 7 | 1-1/8 | 1700 | 1/4 x 3 | 7/8 x 4 | 1.75 |
K060TD | K060TDW | 6 | 5 | 5 | 11-1/2 | 10 | 1-3/8 | 2000 | 1/4 x 3-3/4 | 1-1/8 x 5 | 3.75 |
K100TD | N/A | 10 | 6-1/2 | 7 | 17 | 15 | 1-3/4 | 3500 | 3/8 x 6 | N/A | 11.35 |
LONG-REACH with Copper Plated Jaws, Screw and T-Handle | |||||||||||
K045TL | K045TLW | 4-1/2 | 5-5/8 | 5-1/8 | 9-7/8 | 8-1/2 | 1-7/32 | 680 | 1/4 x 3 | 7/8 x 4 | 2.33 |
K060TL | K060TLW | 6-1/2 | 8-5/8 | 8-3/4 | 13-5/16 | 12-3/4 | 1-7/16 | 845 | 5/16 x 3-3/4 | 1-1/8 x 5 | 4.45 |
HI-VIS YELLOW Deep Reach with Copper Plated Jaws, Screw and T-Handle | |||||||||||
K025TDHVY | K025TDHVYW | 2-1/2 | 1-3/4 | 1-13/16 | 4-1/2 | 4-1/16 | 7/8 | 700 | 1/8 x 1-3/4 | 11/16 x 2-1/2 | 0.51 |
K045TDHVY | K045TDHVYW | 4-1/2 | 2-3/8 | 2-5/8 | 7-1/2 | 7 | 1-1/8 | 1700 | 1/4 x 3 | 7/8 x 4 | 1.75 |
K060TDHVY | K060TDHVYW | 6 | 5 | 5 | 11-1/2 | 10 | 1-3/8 | 2000 | 1/4 x 3-3/4 | 1-1/8 x 5 | 3.75 |
HI-VIS ORANGE Deep Reach with Copper Plated Jaws, Screw and T-Handle | |||||||||||
K025TDHVO | K025TDHVOW | 2-1/2 | 1-3/4 | 1-13/16 | 4-1/2 | 4-1/16 | 7/8 | 700 | 1/8 x 1-3/4 | 11/16 x 2-1/2 | 0.51 |
K045TDHVO | K045TDHVOW | 4-1/2 | 2-3/8 | 2-5/8 | 7-1/2 | 7 | 1-1/8 | 1700 | 1/4 x 3 | 7/8 x 4 | 1.75 |
K060TDHVO | K060TDHVOW | 6 | 5 | 5 | 11-1/2 | 10 | 1-3/8 | 2000 | 1/4 x 3-3/4 | 1-1/8 x 5 | 3.75 |
STAINLESS STEEL with T-Handle. Ideal for use in corrosive, sanitary, or magnetic applications | |||||||||||
K020TS | K020TSW | 2 | 1-1/4 | 1-1/4 | 4 | 3-1/4 | 7/8 | 700 | 1/8 x 1-3/4 | 11/16 x 2-1/2 | 0.42 |
K030TS | K030TSW | 3 | 1-1/4 | 1-1/2 | 6-1/4 | 5-1/4 | 1-1/8 | 1200 | 1/4 x 3 | 7/8 x 4 | 1.14 |
K045TSD | K045TSDW | 4-1/2 | 2-3/8 | 2-1/2 | 7-1/2 | 6-3/4 | 1-1/8 | 1500 | 1/4 x 3 | 7/8 x 4 | 1.74 |
K060TSD | K060TSDW | 6 | 5 | 5 | 11-1/2 | 10 | 1-3/8 | 2000 | 5/16 x 3-3/4 | 1-1/8 x 5 | 3.75 |
NO-MAR®, Round Flat-Pad Jaws, Copper Plated Screw and T-Handle. For wood, plastics, aluminum or polished metals | |||||||||||
K010TP | K010TPW | 1 | 1/2 | 1/2 | 2-1/2 | 1-3/4 | 1/2 | 350 | 1/8 x 1 | 1/2 x 1-1/2 | 0.1 |
K020TP | K020TPW | 2 | 1-1/8 | 1-1/4 | 4-1/2 | 3-1/4 | 1-3/8 | 800 | 1/8 x 1-3/4 | 11/16 x 2-1/2 | 0.46 |
K025TPD | K025TPDW | 2-1/2 | 1-3/4 | 1-13/16 | 4-1/2 | 4-1/16 | 1-3/8 | 700 | 1/8 x 1-3/4 | 11/16 x 2-1/2 | 0.51 |
K030TP | K030TPW | 3 | 1-1/4 | 1-3/4 | 6-3/4 | 5 | 1-7/8 | 1500 | 1/4 x 3 | 7/8 x 4 | 1.26 |
K045TPD | K045TPDW | 4-1/2 | 2-1/4 | 2-1/2 | 8-1/4 | 6-3/4 | 1-7/8 | 1700 | 1/4 x 3 | 7/8 x 4 | 1.87 |
POLYURETHANE JAWS with Copper T-Handle. Ideal for holding polished/finished materials. Jaws are 65 to 75 on Shore Hardness D Scale. (70 D±5) | |||||||||||
K030TU | K030TUW | 3 | 1-1/4 | 1-3/4 |
