Brand: Tungaloy
Tungaloy TG206712876 JSDJ2XR082
SKU: FTS-TG206712876
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6712876 JSDJ2XR082Full Description

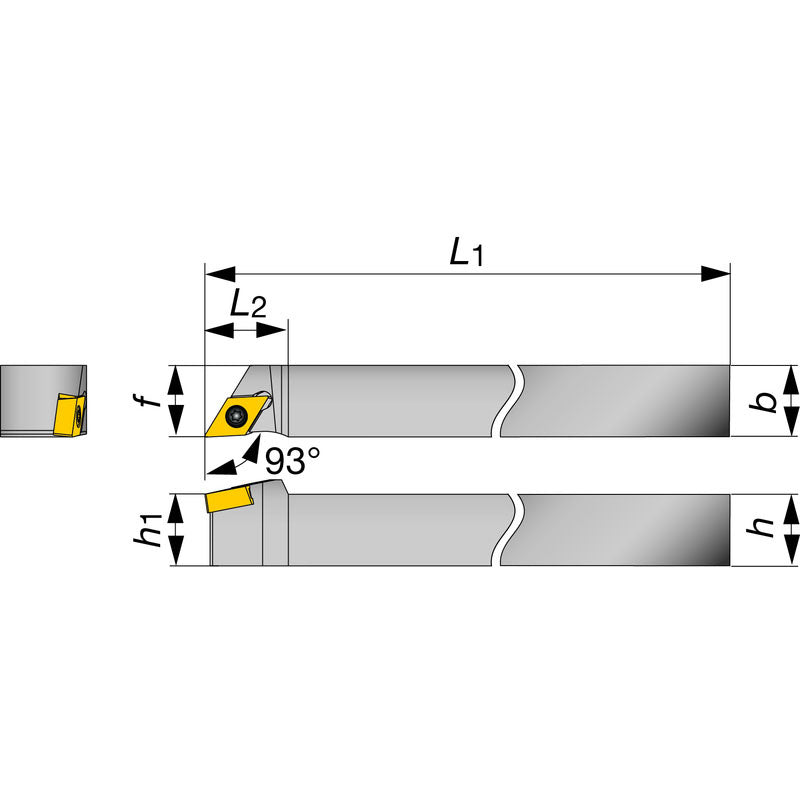

| Shank Height (H) | 1/2" | Master Insert Identification (MIID) | DXGU220.5L-TS |
| Shank Width (B) | 1/2" | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 4-3/4" | Body Material | Steel |
| Functional Length (LF) | 4-3/4" | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 5/8" | Measurement Type | Inch |
| Functional Width (WF) | 0" | Style | JSDJ2XR082 |
| Cutting Direction (HAND) | Right Hand | Insert Style | 4.75" |
Family Description
No-offset Screw-on toolholder with 93deg approach angle for DX*U inserts
Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping.
