Brand: Tungaloy
Tungaloy TG206712863 JPWL2XL102
SKU: FTS-TG206712863
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6712863 JPWL2XL102Full Description
| Shank Height (H) | 5/8" | Application | | For 80deg Trigon insert | For Miniature machining | |
| Shank Width (B) | 5/8" | Body Material | Steel |
| Overall Length (OAL) | 4-3/4" | Clamping System | SLLV-2 |
| Functional Length (LF) | 4-3/4" | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND FACING |
| Head Length (LH) | 1/2" | Measurement Type | Inch |
| Functional Width (WF) | 0" | Style | JPWL2XL102 |
| Cutting Direction (HAND) | Left Hand | Insert Style | 4.75" |
| Master Insert Identification (MIID) | WXGU220.5R |
Family Description

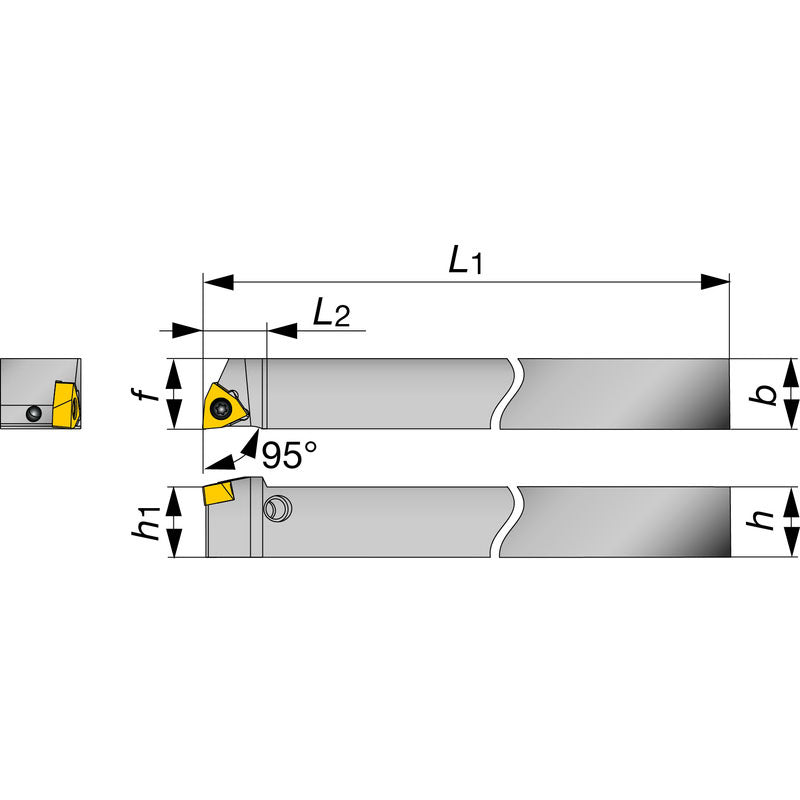

No-offset Back clamp toolholder with 95deg approach angle, for WXG* inserts
Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque: Recommended torque (Nm) for clamping.
