Brand: INDUSTRIAL MAGNETICS

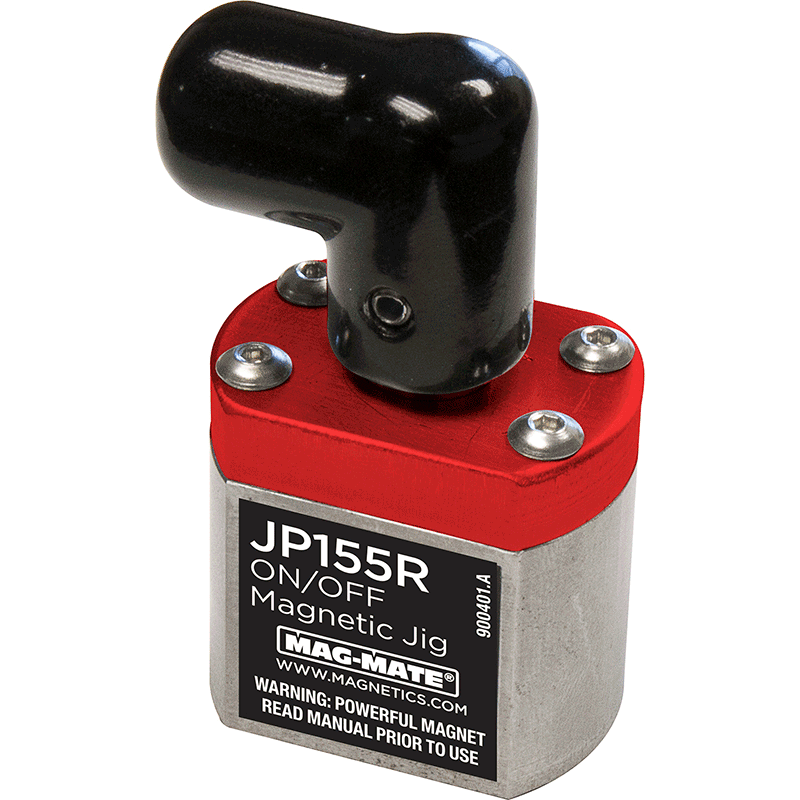

Industrial Magnetics MAG-MATE® On/Off Magnet Jig 155 Lb Cap JP155R
SKU: IM-JP155R
MPN:
Shipping calculated at checkout.
Available from Manufacturer: 583
Manufacturer inventory may vary at the time of order.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
*Please note, there is a $75 minimum for all Industrial Magnetics product orders*
Short Description
Industrial Magnetics MAG-MATE® On/Off Magnet Jig 155 Lb Cap JP155R. Magnetic Jigs and Fixture Magnets. These Switchable On/Off Rare Earth Magnetic Jigs and fixture magnets (popular with woodworkers) are simple, fast and strong clamps.Full Description
Industrial Magnetics MAG-MATE® On/Off Magnet Jig 155 Lb Cap JP155R
These Switchable On/Off Rare Earth Magnetic Jigs and fixture magnets (popular with woodworkers) are simple, fast and strong clamps.
Features:
- Easy On/Off controls for fast, strong, and precise positioning
- Use at least two per fixture; add more for even greater holding force.
- Jigs flange 0.50" thick secured with two #8 screws and will mount flush on 3/4" board - Use 40mm Forstner bit for large Jigs & 30mm for small Jigs.
| ON/OFF Rare Earth Fixture Magnets - MagJigs and MagBases | ||||||||||
| Part No. | Hold - lbs (kg) | Description | Magnet Dia. (in.) | Magnet Dia. (mm) | Mount Depth (in) | Housing Height (in) | Overall Height (in) | Overall Width (in) | Overall Length (in) | Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| JP095R | 95.0 (43.09) | Magnetic Base (Non-Flanged) | 1.18 | 30 | 1.00 | 1.25 | 2.18 | 0.85 | 1.18 | 0.30 |
| JP155R | 155.0 (70.30) | Magnetic Base (Non-Flanged) | 1.57 | 40 | 1.00 | 1.25 | 2.18 | 1.25 | 1.57 | 0.55 |
| JF095R | 95.0 (43.09) | Magnetic Jig (Flanged) | 1.18 | 30 | 1.00 | 1.25 | 2.18 | 0.85 | 2.25 | 0.35 |
| JF155R | 155.0 (70.30) | Magnetic Jig (Flanged) | 1.57 | 40 | 1.00 | 1.25 | 2.18 | 1.25 | 2.64 | 0.60 |
