Brand: INDUSTRIAL MAGNETICS

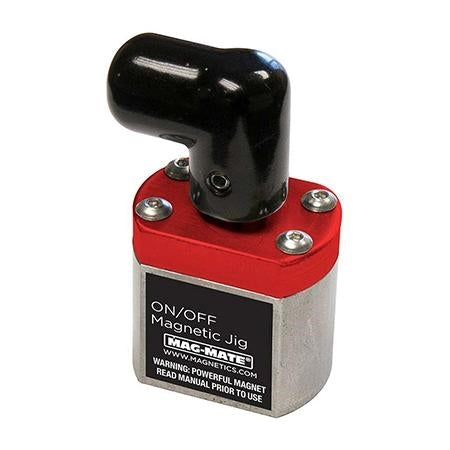

Industrial Magnetics MAG-MATE® On/Off Magnet Jig 95 Lb Cap JP095R

SKU: IM-JP095R
MPN: JP095R

$52.86
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Industrial Magnetics MAG-MATE® On/Off Magnet Jig 95 Lb Cap JP095R. Magnetic Jigs and Fixture Magnets. These Switchable On/Off Rare Earth Magnetic Jigs and fixture magnets (popular with woodworkers) are simple, fast and strong clamps.

*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Industrial Magnetics MAG-MATE® On/Off Magnet Jig 95 Lb Cap JP095R

These Switchable On/Off Rare Earth Magnetic Jigs and fixture magnets (popular with woodworkers) are simple, fast and strong clamps.

Features:

Easy On/Off controls for fast, strong, and precise positioning
Use at least two per fixture; add more for even greater holding force.
Jigs flange 0.50" thick secured with two #8 screws and will mount flush on 3/4" board - Use 40mm Forstner bit for large Jigs & 30mm for small Jigs.

Literature Download: Magnetic Jigs and Fixture Magnets

Part No.	Hold - lbs (kg)	Description	Magnet Dia. (in.)	Magnet Dia. (mm)	Mount Depth (in)	Housing Height (in)	Overall Height (in)	Overall Width (in)	Overall Length (in)	Wt. (lbs)
ON/OFF Rare Earth Fixture Magnets - MagJigs and MagBases
JP095R	95.0 (43.09)	Magnetic Base (Non-Flanged)	1.18	30	1.00	1.25	2.18	0.85	1.18	0.30
JP155R	155.0 (70.30)	Magnetic Base (Non-Flanged)	1.57	40	1.00	1.25	2.18	1.25	1.57	0.55
JF095R	95.0 (43.09)	Magnetic Jig (Flanged)	1.18	30	1.00	1.25	2.18	0.85	2.25	0.35
JF155R	155.0 (70.30)	Magnetic Jig (Flanged)	1.57	40	1.00	1.25	2.18	1.25	2.64	0.60
