Brand: Iscar

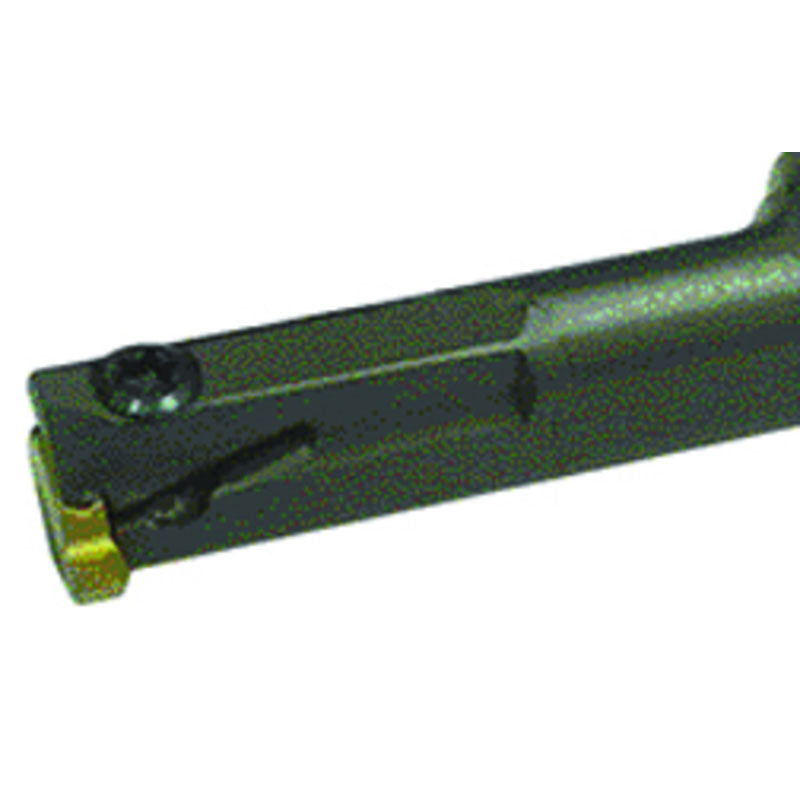

Iscar EH2800346 GHIR 25.4-6
SKU: FTS-EH2800346
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 2800346 GHIR 25.4-6Full Description
| Cutting Width Minimum (CWN) | 0.157" | Connection Diameter Machine Side (DCONMS) | 1" |
| Cutting Width Maximum (CWX) | 0.252" | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.197" | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 0.984" | Body Material | Steel |
| Functional Width (WF) | 0.69" | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 2" | Measurement Type | Inch |
| Overall Length (OAL) | 8" |
Family Description
Grooving and turning boring bars.
When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance
