Brand: Iscar

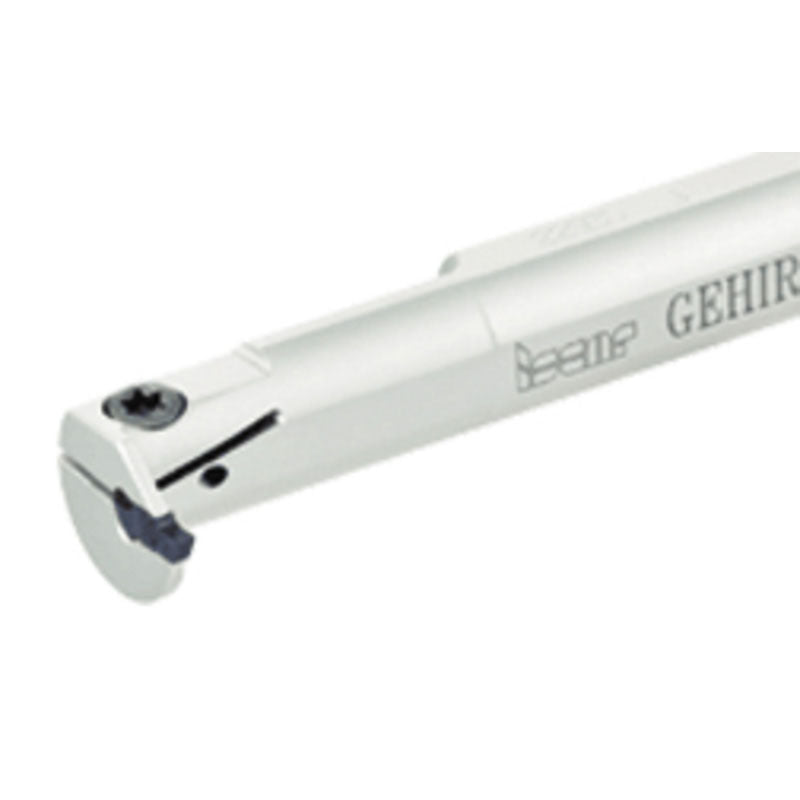

Iscar EH2801143 GEHIR 15.9-13-2-T2.4
SKU: FTS-EH2801143
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 2801143 GEHIR 15.9-13-2-T2.4Full Description
| Cutting Width Minimum (CWN) | 0.075" | Connection Diameter Machine Side (DCONMS) | 5/8" |
| Cutting Width Maximum (CWX) | 0.095" | Coolant Supply Property (CSP) | Through Hole |
| Cutting Depth Maximum (CDX) | 0.094" | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 0.492" | Body Material | Steel |
| Functional Width (WF) | 0.41" | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 0.86" | Measurement Type | Inch |
| Overall Length (OAL) | 5" |
Family Description
Internal machining bars with a coolant holes using GEMI and GEPI inserts in widths larger than .075".
