Brand: Iscar

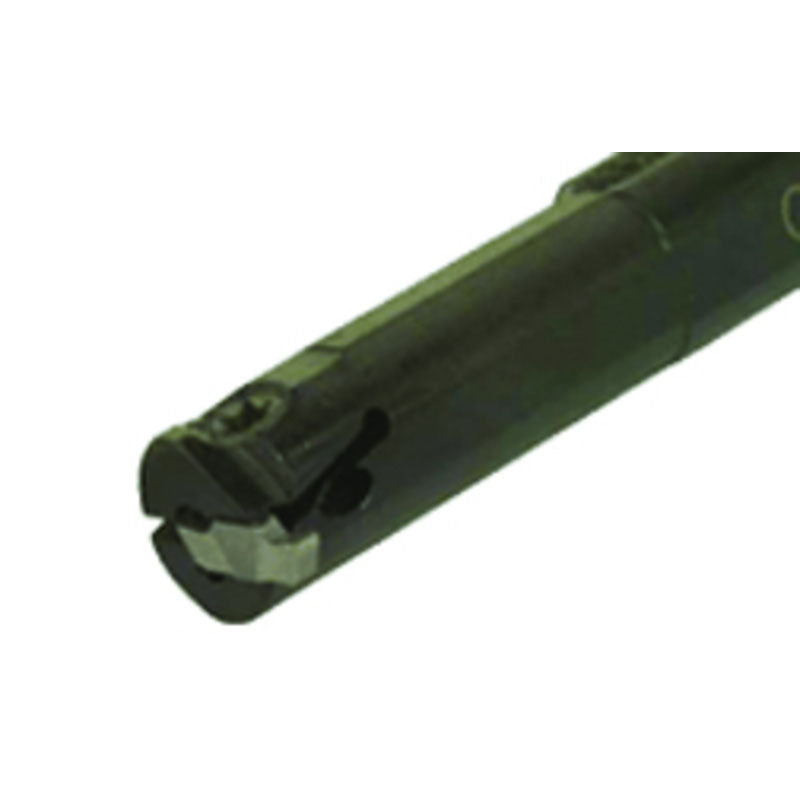

Iscar EH2801195 GEHIMR 15.9-16
SKU: FTS-EH2801195
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 2801195 GEHIMR 15.9-16Full Description
| Cutting Width Minimum (CWN) | 0.031" | Connection Diameter Machine Side (DCONMS) | 5/8" |
| Cutting Width Maximum (CWX) | 0.075" | Coolant Supply Property (CSP) | Through Hole |
| Cutting Depth Maximum (CDX) | 0.098" | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 0.63" | Body Material | Steel |
| Functional Width (WF) | 0.41" | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 1.57" | Measurement Type | Inch |
| Overall Length (OAL) | 6" |
Family Description
Internal machining boring bars with coolant holes, using GEMI and GEPI inserts in smaller than .075" widths (the insert is not fully supported).
