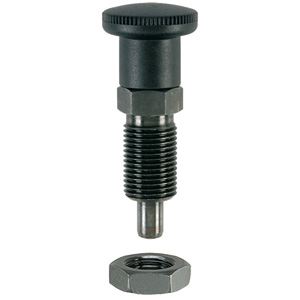

INDEX PLUNGERS COMPACT - 22110.0236

Brand: HALDER

INDEX PLUNGERS COMPACT - 22110.0236

SKU: EH-22110.0236
MPN: 22110.0236

Only 0 left!
Please Email SALES For Pricing

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Index Plungers compact, with hexagon collar and locking | d1=12 mm / l2 min.=15 mm / Stainless steel | 22110.0236
Halder 22110.0236 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Index plungers are used for indexing bores.

Types with / without lock have the same building height.

Due to a thread recess the index plungers can be completely screwed in.

Material

Body

  • Stainless steel 1.4305

Locking pin

  • Stainless steel 1.4305, nickel-plated

Knob

  • Thermoplastic PA 6, black, dull

Assembly

The screw length can be adapted by distance collars for index plungers (EH 22120.).

Operation

The knob is pulled-out, turned 90–‘ and secured by a notched catch (when locking pin must not project).

Notes

Knob not removable.

Lock nuts have to be purchased separately.
