INDEX PLUNGERS - 22120.0246

Brand: HALDER

INDEX PLUNGERS - 22120.0246

SKU: EH-22120.0246
MPN: 22120.0246

Only 0 left!
Please Email SALES For Pricing

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

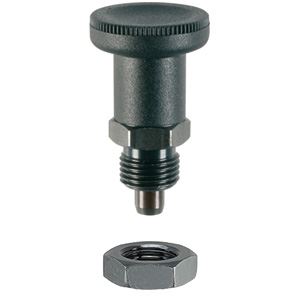

Index Plungers, with hexagon collar, short/without locking | d1=6 mm / Stainless steel | 22120.0246
Halder 22120.0246 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Index plungers are used for indexing bores.

The small dimensions are a feature of these index plungers.

Material

Body

  • Stainless steel 1.4305

Locking pin

  • Stainless steel 1.4305, nickel-plated

Knob

  • Thermoplastic PA 6, black, dull

Assembly

The screw length can be adapted by distance collars for index plungers (EH 22120.).

Operation

When using locking index plungers, the knob is pulled-out, turned 90–‘ and secured by a notched catch (when locking pin must not project).

Notes

Knob not removable.

Lock nuts have to be purchased separately.

Halder 22120.0246 Data Sheet
