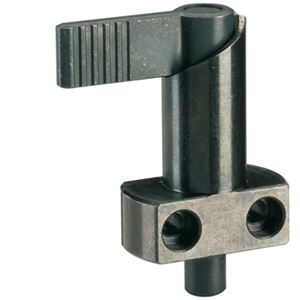

INDEX BOLTS - 22120.0388

Brand: HALDER

INDEX BOLTS - 22120.0388

SKU: EH-22120.0388
MPN: 22120.0388

Only 0 left!
Please Email SALES For Pricing

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Index Bolts, with mounting flange/with plastic cover for grip | d1=8 mm / l2=10 mm | 22120.0388
Halder 22120.0388 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Index bolts are used for indexing purposes.

Plastic cover for grip allows better handling.

Material

Body

  • Steel, blackened

Locking pin

  • Steel, nitrided, black

Plastic cap

  • Thermoplastic, black, dull

Assembly

Right and left mounting is possible due to countersinks on both sides.

Index bolt for lateral fastening.

Operation

By turning the index bolt 180–‘ the locking pin will be pulled-in and secured by a notched catch (when locking pin must not project).
