Brand: Ingersoll

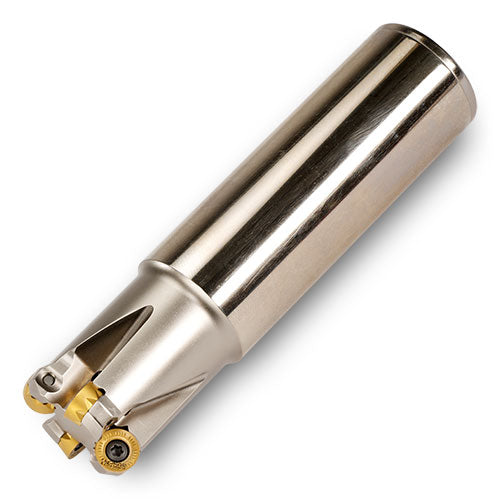

Ingersoll IC523032508 15B1B02404480R00
SKU: FTS-IC523032508
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC523032508 15B1B02404480R00Full Description
| Cutting Diameter (DC) | 0.481" | Connection Diameter Machine Side (DCONMS) | 1" |
| Cutting Diameter Maximum (DCX) | 0.945" | Master Insert Identification (MIID) | RJLT 12 |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 1.55" |
| Depth of Cut Maximum (APMX) | 0.236" | Corner Radius (RE) | 0.197" |
| Shank Type | Round | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2" | Body Material | Steel |
Family Description
Reliable performance, strength & economy!
