Brand: Ingersoll

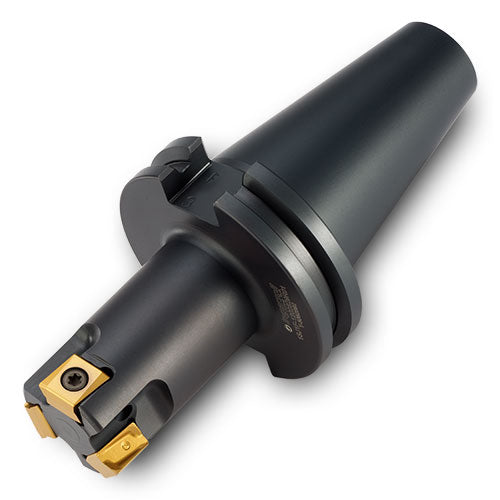

Ingersoll IC523030829 1SJ1F-1202829R01
SKU: FTS-IC523030829
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC523030829 1SJ1F-1202829R01Full Description
| Cutting Diameter (DC/DCX) | 1-1/4" | Application | | Facing | Shouldering | Slotting | |
| Cutting Diameter (DC) | 1-1/4" | Functional Length (LF) | 2-7/8" |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 2.065" |
| Depth of Cut Maximum (APMX) | 0.42" | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 5.562" | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.9 Degrees | Body Material | Steel |
Family Description
.42" Max. depth of cut 11 mm Insert with 4 indexes Insert corners: .031", .062", .093", .125" R
