Brand: Ingersoll
Ingersoll IC522917447 2J1G-40R03
SKU: FTS-IC522917447
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC522917447 2J1G-40R03Full Description

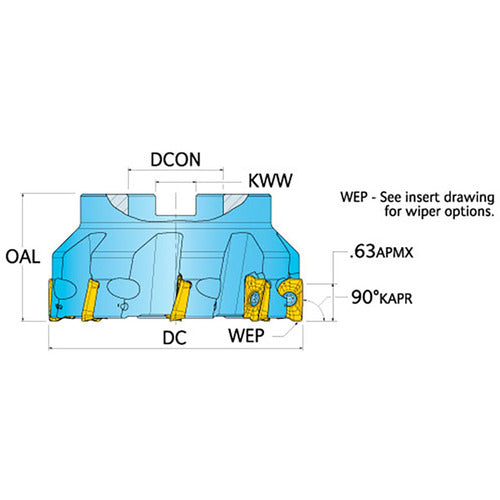

| Cutting Diameter (DC/DCX) | 4" | Ramping Angle Maximum (RMPX) | 1.8 Degrees |
| Cutting Diameter (DC) | 4" | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.63" | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2" | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8" |
Family Description
Insert corners: .015", .031", .062", .093", .125", .156", .187", .250" R
