Brand: Ingersoll

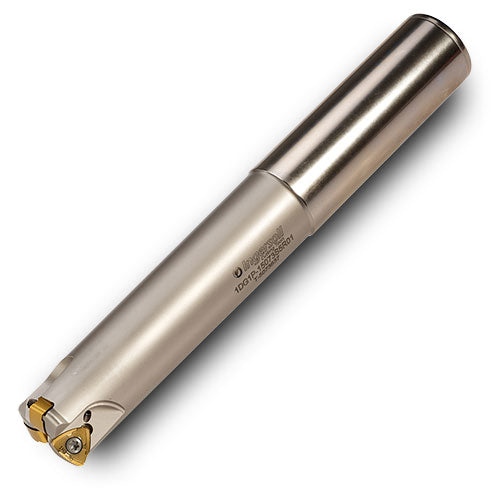

Ingersoll IC522912703 1DG1P-15073S5R01
SKU: FTS-IC522912703
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC522912703 1DG1P-15073S5R01Full Description
| Cutting Diameter (DC/DCX) | 1-1/2" | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slotting | |
| Cutting Diameter (DC) | 0.755" | Connection Diameter Machine Side (DCONMS) | 1-1/2" |
| Cutting Diameter Maximum (DCX) | 1-1/2" | Usable Length (LU) | 5.618" |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.079" | Measurement Type | Inch |
| Overall Length (OAL) | 10" | Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Protruding Length (LPR) | 7.34" |
Family Description
13 mm IC Insert with 6 indexes 2 mm (.078") Max. depth of cut Three different insert edge preparations provide application flexibility Excellent high feed performance & economy!
