Brand: Ingersoll

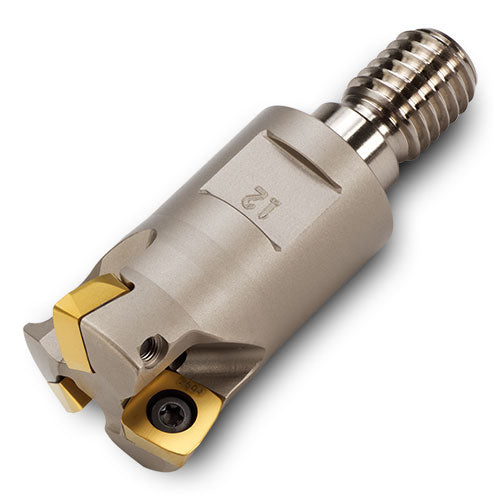

Ingersoll IC522912652 15G1F-12015X8R02
SKU: FTS-IC522912652
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC522912652 15G1F-12015X8R02Full Description
| Cutting Diameter (DC/DCX) | 1-1/4" | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | |
| Cutting Diameter (DC) | 0.773" | Functional Length (LF) | 1.57" |
| Cutting Diameter Maximum (DCX) | 1-1/4" | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Cutting Item Count (CICT) | 4 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.06" | Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 3.3 Degrees | Hub Diameter (DHUB) | 1.132" |
Family Description
.060" Max. depth of cut Superior high-feed semi finish laid by both axial and radial wipers
