Brand: Ingersoll

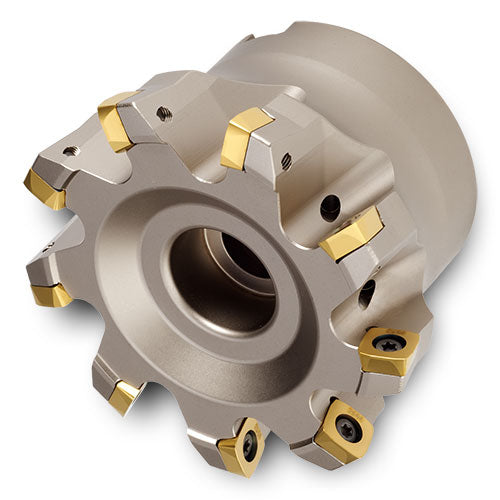

Ingersoll IC522912648 5G6F-20R01
SKU: FTS-IC522912648
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC522912648 5G6F-20R01Full Description
| Cutting Diameter (DC/DCX) | 2" | Overall Length (OAL) | 1.97" |
| Cutting Diameter (DC) | 1.521" | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Cutting Diameter Maximum (DCX) | 2" | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | |
| Depth of Cut Maximum (APMX) | 0.06" | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4" | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
Family Description
.060" (1.5 mm) Max. depth of cut 9 mm IC insert with 4 indexes 12° Hi-feed rougher Multiple insert styles for application flexibility .060" Insert wiper, face and O.D. Extremely free cutting! Excellent performance & economy!
