Brand: Ingersoll

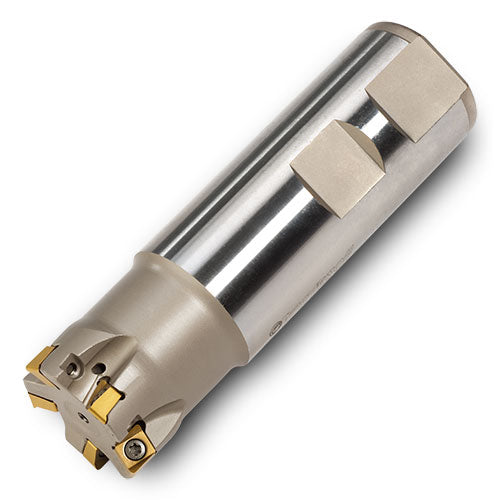

Ingersoll IC522910915 1TJ1D-1201781R01
SKU: FTS-IC522910915
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC522910915 1TJ1D-1201781R01Full Description
| Cutting Diameter (DC/DCX) | 1-1/4" | Connection Diameter Machine Side (DCONMS) | 1-1/4" |
| Cutting Diameter (DC) | 1-1/4" | Usable Length (LU) | 1.72" |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.24" | Measurement Type | Inch |
| Overall Length (OAL) | 4" | Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 3.6 Degrees | Protruding Length (LPR) | 1-3/4" |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
Family Description
32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper Backdraft insert option to reduce vibration for long reach applications
