Brand: Ingersoll

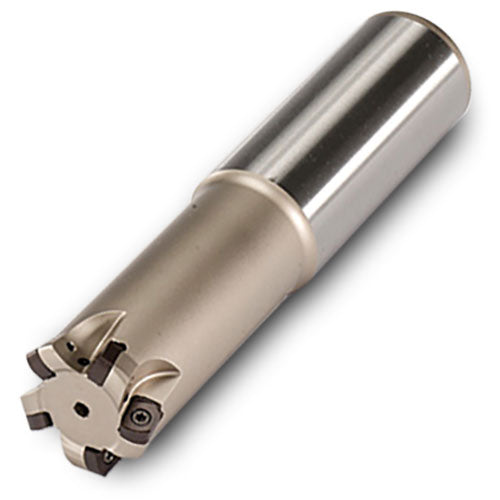

Ingersoll IC522906896 1TG1G-15016E2R05
SKU: FTS-IC522906896
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC522906896 1TG1G-15016E2R05Full Description
| Cutting Diameter (DC/DCX) | 1-1/2" | Connection Diameter Machine Side (DCONMS) | 1-1/4" |
| Cutting Diameter (DC) | 1.09" | Usable Length (LU) | 1.45" |
| Cutting Diameter Maximum (DCX) | 1-1/2" | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 5 | Diameter | 0" |
| Depth of Cut Maximum (APMX) | 0.72" | Measurement Type | Inch |
| Overall Length (OAL) | 6" | Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Protruding Length (LPR) | 1.69" |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
Family Description
1.5 mm (.059") Max. depth of cut Three different insert edge preparations provide application flexibility. Excellent high feed performance & economy!
